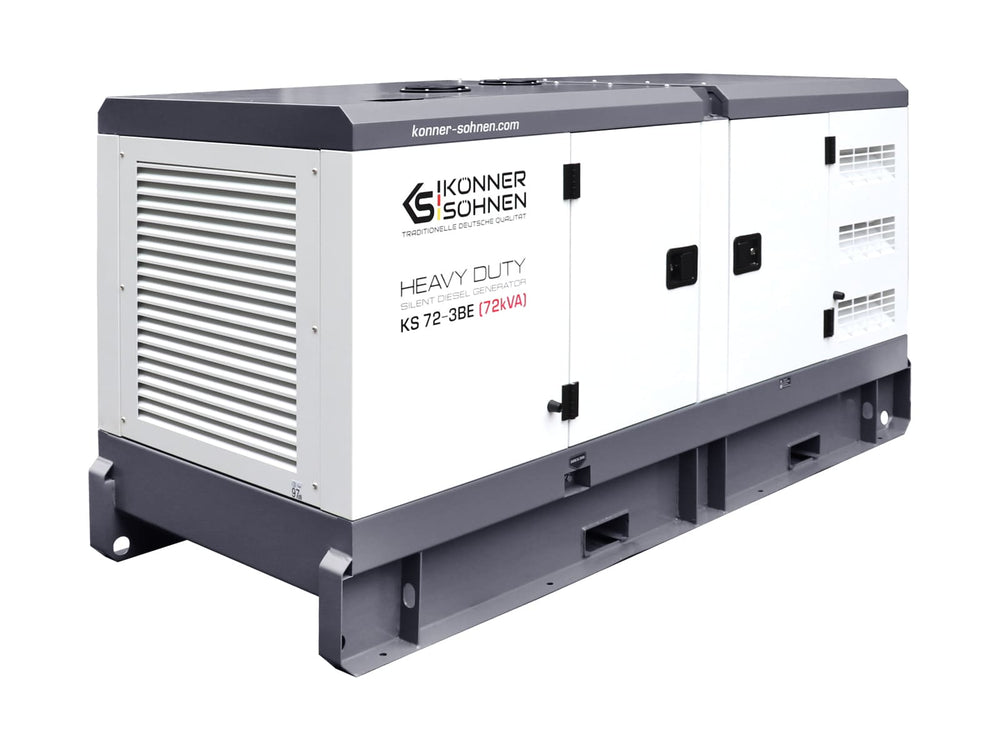

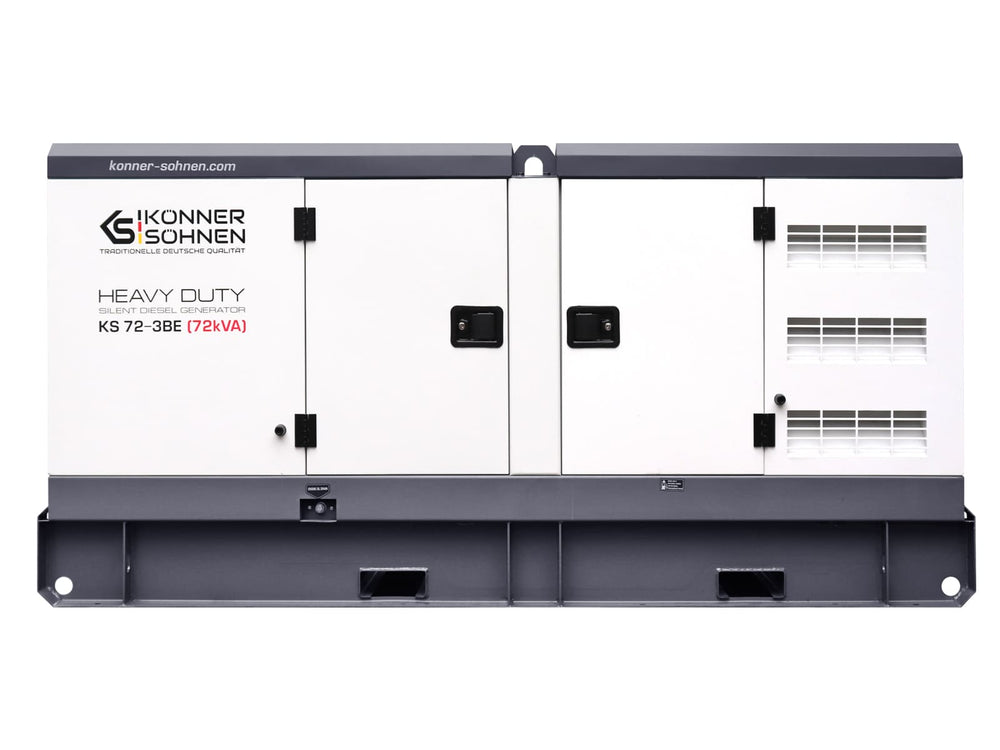

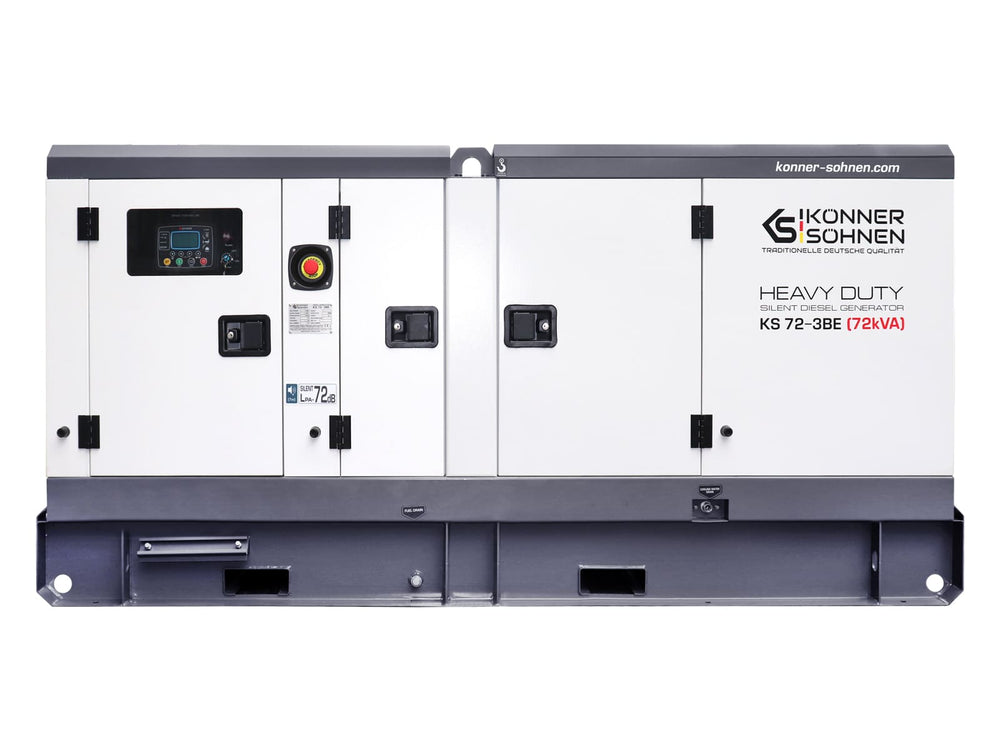

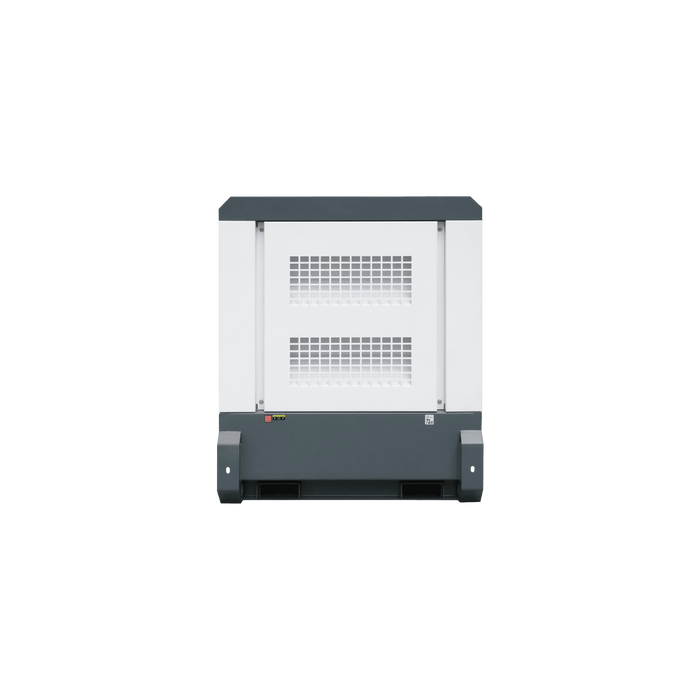

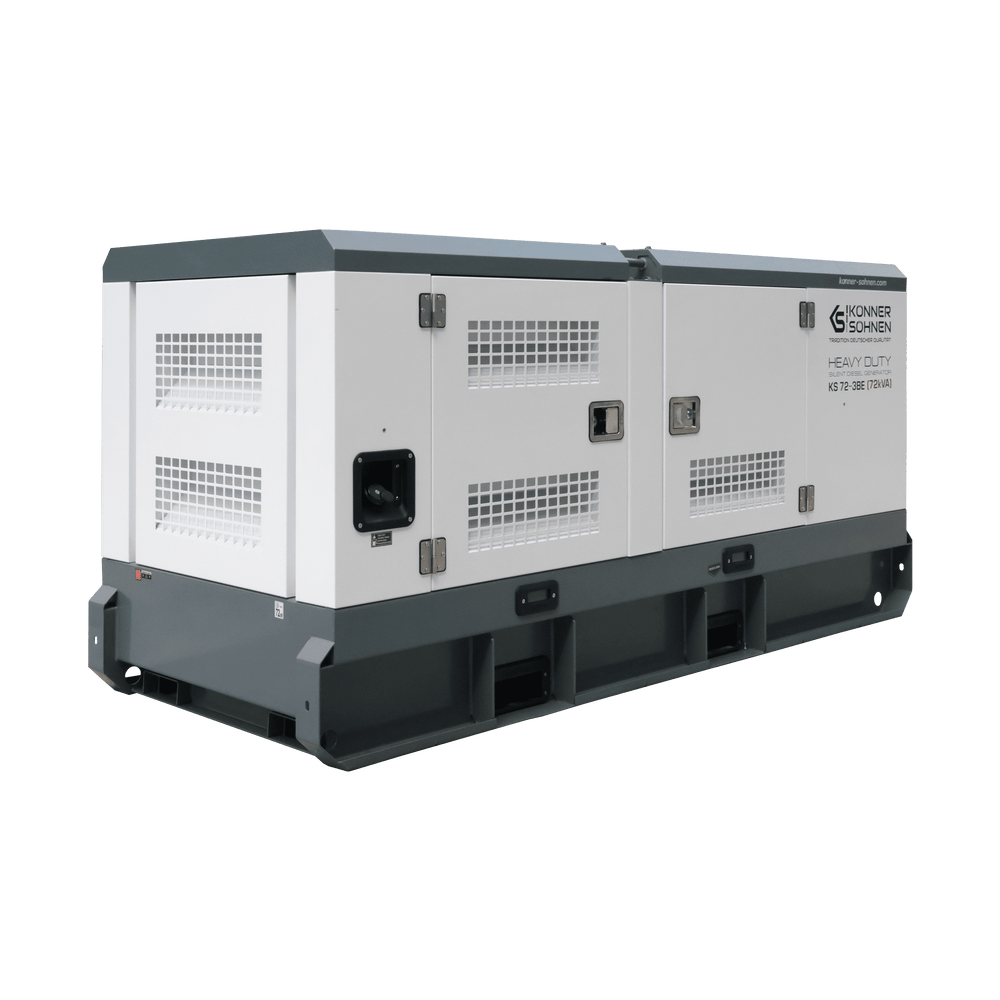

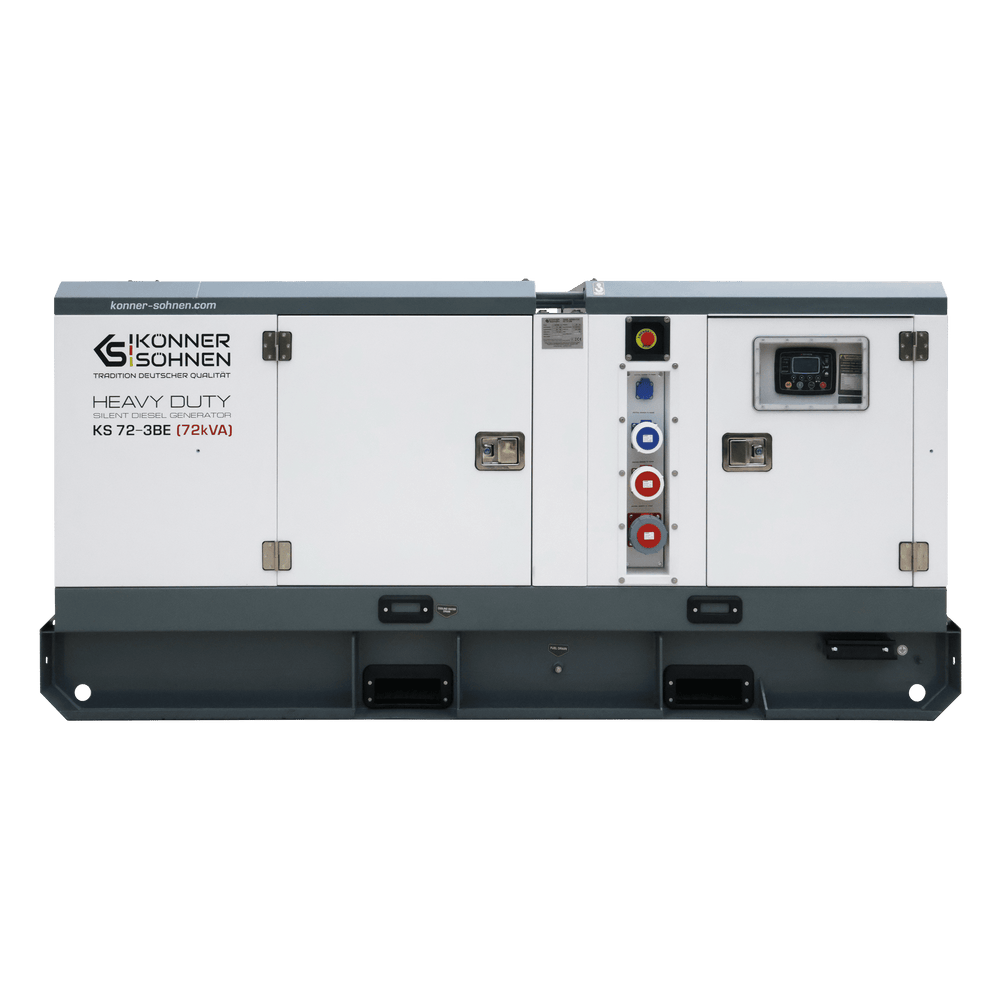

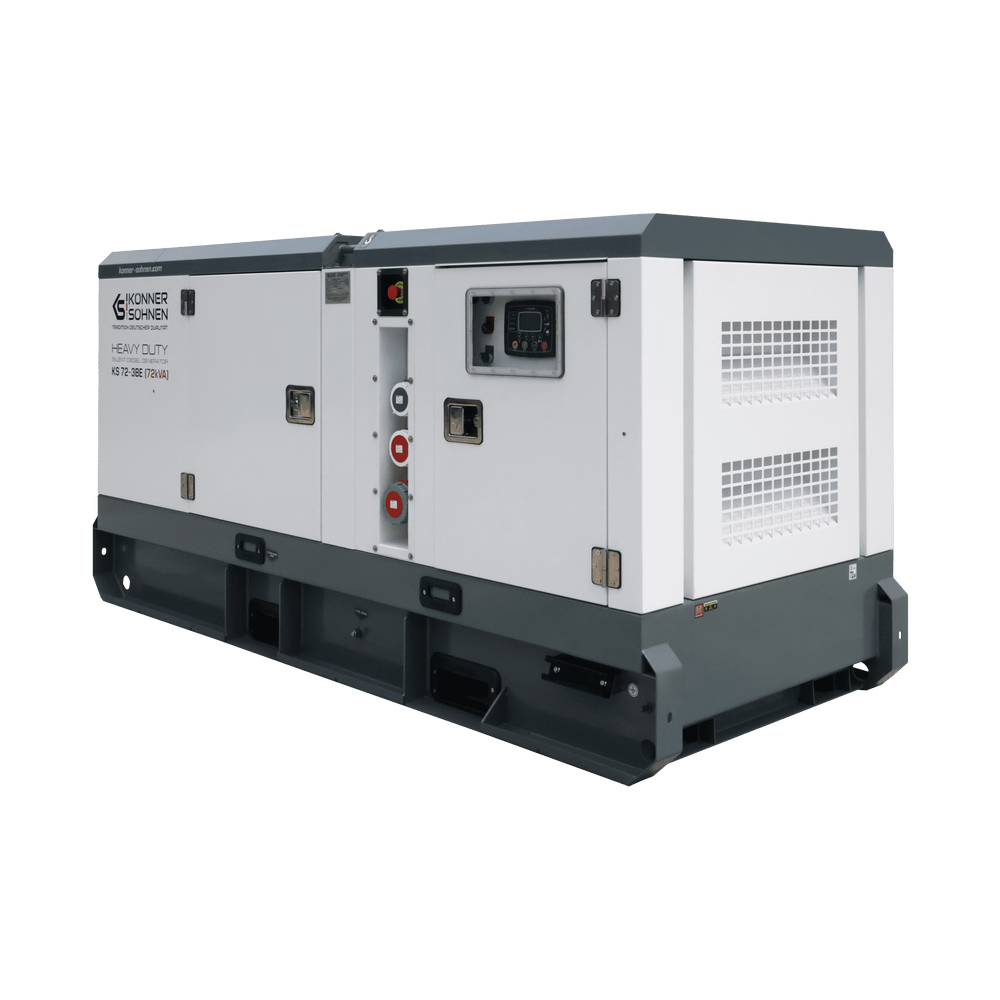

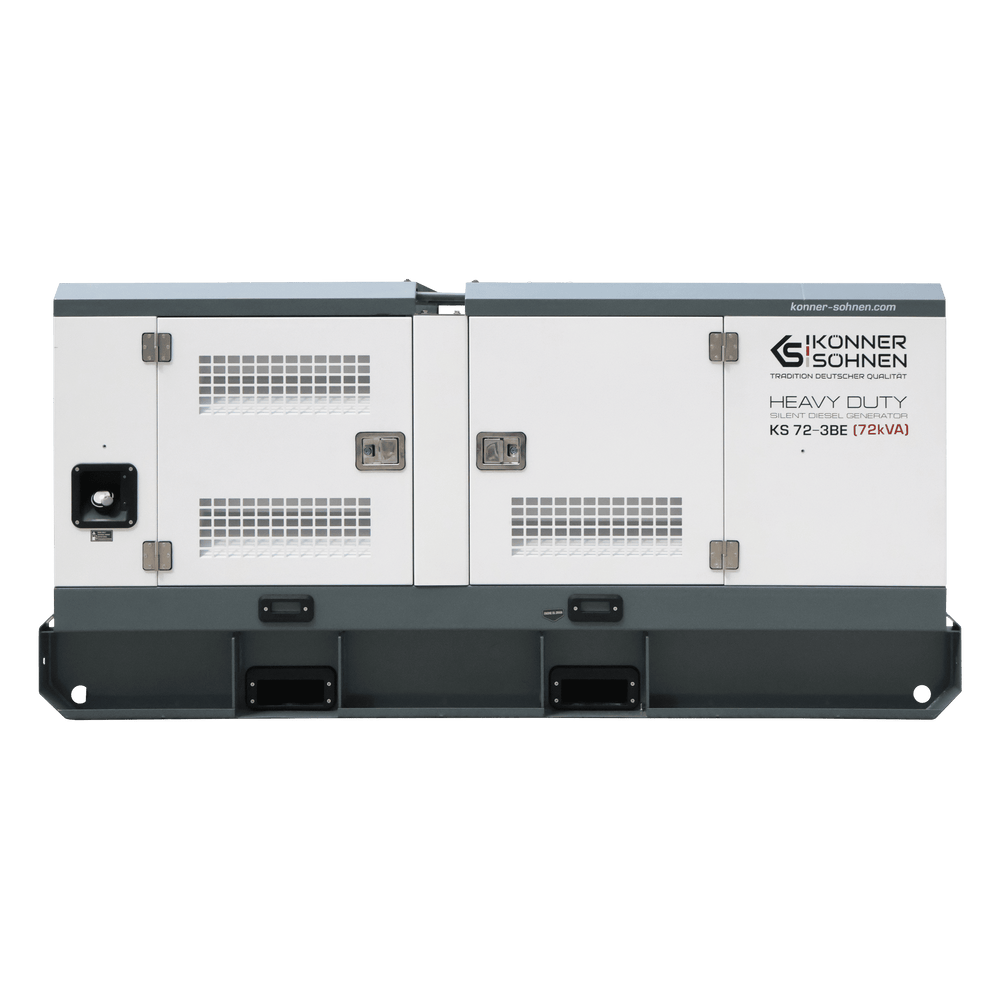

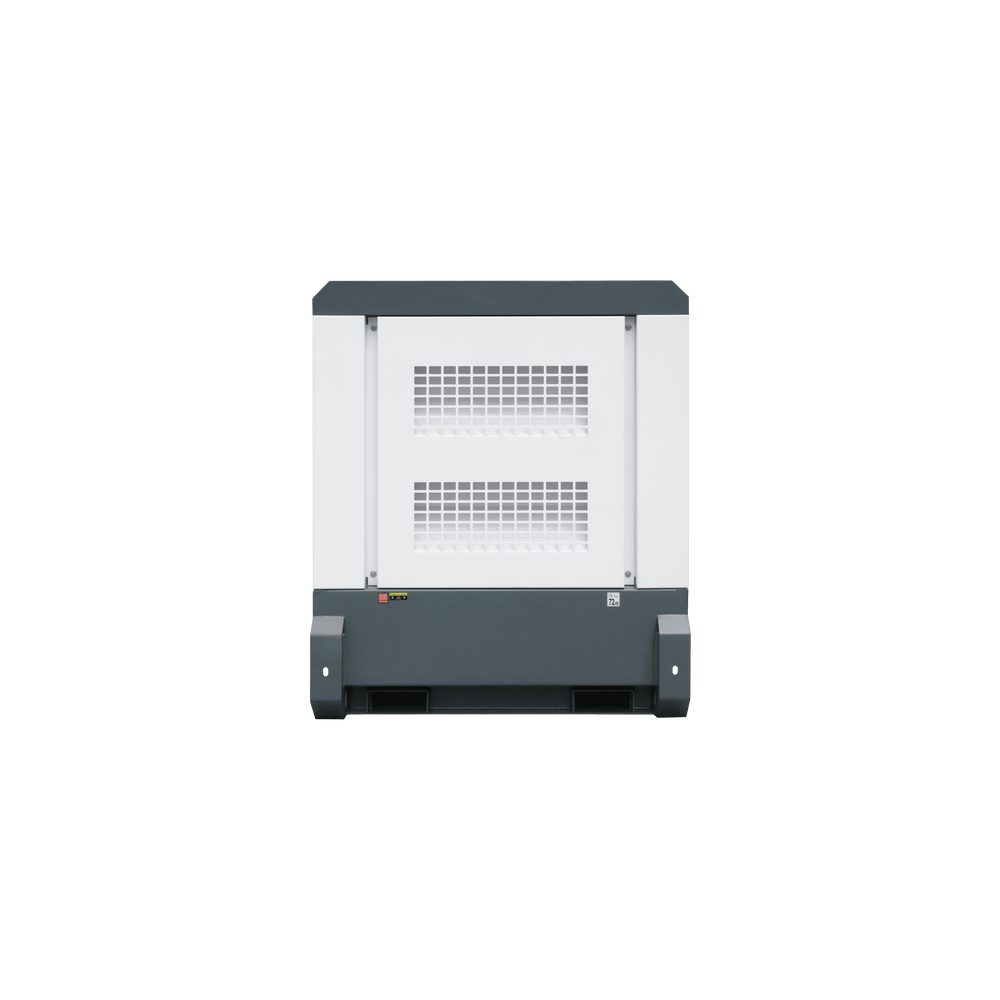

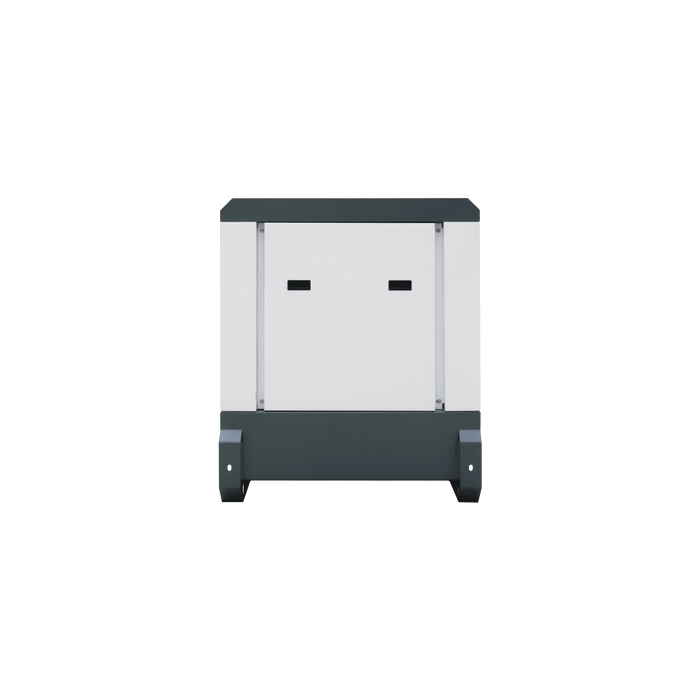

3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE thumbnail
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
3 phase generator KS 72-3BE
71 999,00 zł
3 phase generator KS 72-3BE
71 999,00 zł

3 phase generator KS 72-3BE

Unavailable
71 999,00 zł

Specification

Voltage, V: 230/400
Engine brand: Baudouin
Max/Nominal power (400V), kVA: 72/65

Delivery

  • Delivery cost is calculated individually. Please contact us for a price estimate.
Delivery

Shippers:

  • DPD (Parcel shipping)
  • GLS (Parcel shipping)
  • Dachser (Pallet shipping)
  • DHL

Shipping Costs:

Delivery cost is calculated individually. Please contact us via email at shop@dimaxgroup.de

Delivery Times:

Unless otherwise specified in the respective offer, delivery within Germany takes place within 1 to 5 days, and for international deliveries within 7 days after the conclusion of the contract. Please note that there is no delivery on Sundays and public holidays.

Transport Damage:

In case of transport damage, you can find more on this page "Behavior in the event of transport damage".

Payment

  • We offer a wide range of secure and convenient payment methods, including:
  • visa
  • maestro
  • paypal
  • Tpay
  • Blik
  • Raty Pekao
Payment

Security and Data Protection:

Your security is our top priority. We use Shopify Payments, one of the most secure payment platforms, to process your transactions. Your payment data is transmitted via an encrypted connection and is never stored on our servers. You can rest assured that your data is fully protected with us.

Shipping and Payment

We ship your order immediately after successful payment, ensuring you receive your products as quickly as possible. Please ensure that payment is made promptly to avoid delays and to have your order in your hands in the shortest possible time.

Refunds:

We want you to be completely satisfied. That's why we offer a 30-day return policy after you receive your order. If a product does not meet your expectations, you will of course receive a full refund. In the case of a refund, it will be processed quickly and easily through your original payment method. Please note that it may take a few days for the refund to be credited depending on the payment provider.To learn more about the easy return process, check this page "Right of Withdrawal".

Features

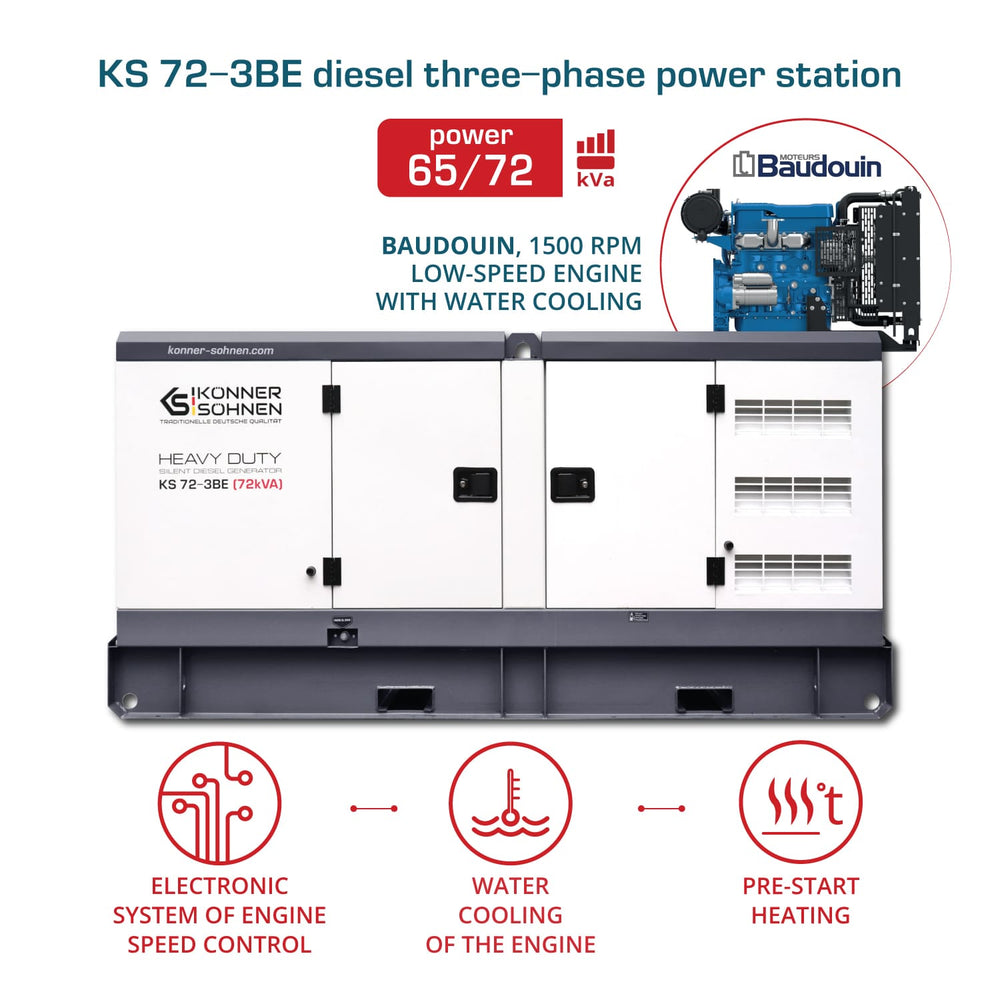

The 4-cylinder diesel power plants of the HEAVY DUTY series by the German brand Könner & Söhnen are based on reliable water-cooled engines from the French brand Baudouin.

The plants are equipped with an electronic engine speed control system and a pre-start coolant heating system. Power plants have galvanic coating, which is more resistant to corrosion and extends the service life of the units.

All of this ensures a long service life and uninterrupted operation of the plants. Even in the most challenging conditions, Könner & Söhnen power plants will operate stably and reliably, providing uninterrupted power supply covering a wide range of capacities, enabling the selection of an optimal solution for various facilities and their energy demands. This makes them the most appropriate solution for industries such as manufacturing, agriculture, construction, healthcare, as well as civil and critical infrastructure.

01 BAUDOUIN LOW-SPEED ENGINE
02 WATER COOLING
03 PRE-START HEATING
04 DIGITAL CONTROLLER
05 CAPABILITY OF ATS CONNECTION
06 MAXIMUM DEGREE OF SECURITY
07 SUPER SILENT SOUNDPROOF ENCLOSURE
08 CONVENIENT TRANSPORTATION
09 GALVANIC COATING
10 COMMISSIONING IN EUROPE

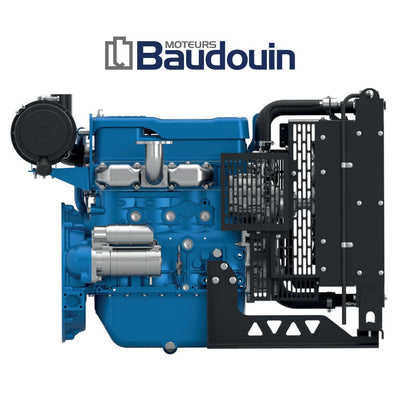

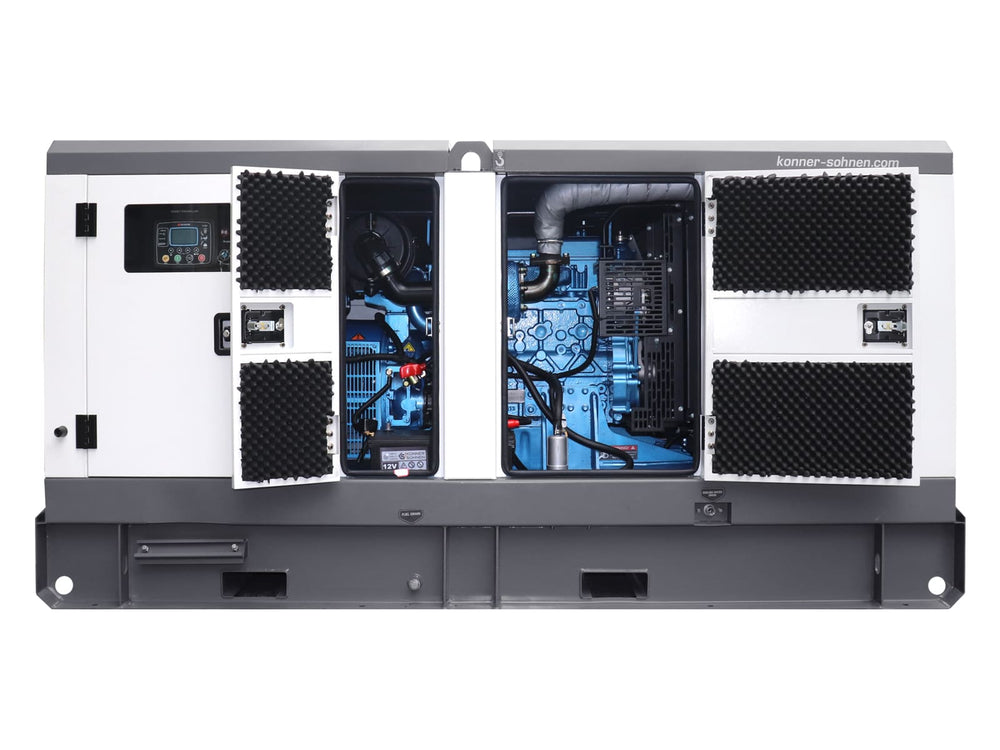

BAUDOUIN LOW-SPEED ENGINE

Reliable 4-cylinder low-speed water-cooled engines from the French company Baudouin, which has 100 years of experience in designing and manufacturing top-quality engines, fully comply with the highest European and international quality standards. Powerful and reliable, Baudouin engines are characterized by high performance.
BAUDOUIN LOW-SPEED ENGINE

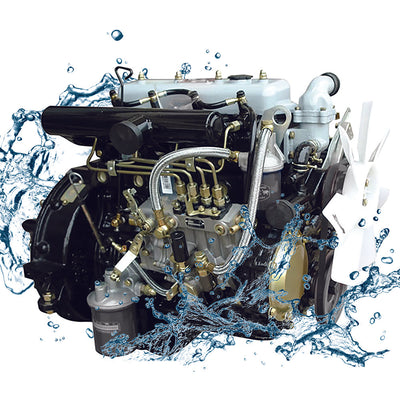

WATER COOLING

The engine water cooling system ensures reliable operation and protects the engine from premature wear. Thanks to the efficient cooling of the engine, this generator can operate at high ambient temperatures.
WATER COOLING

PRE-START HEATING

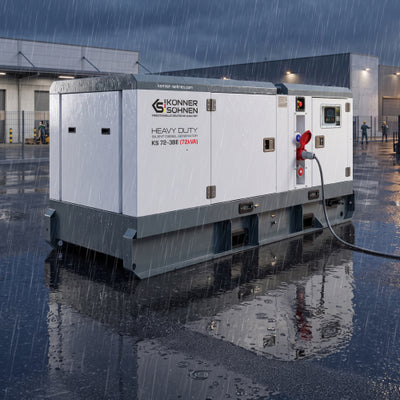

The integrated pre-start coolant heating system automatically maintains the necessary temperature for a safe engine start, enabling a quick startup of the power plant in subzero temperatures.
PRE-START HEATING

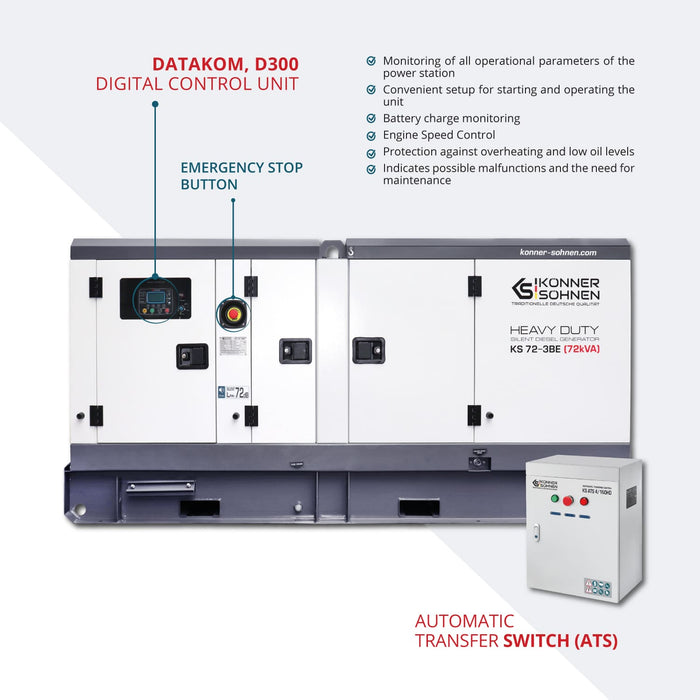

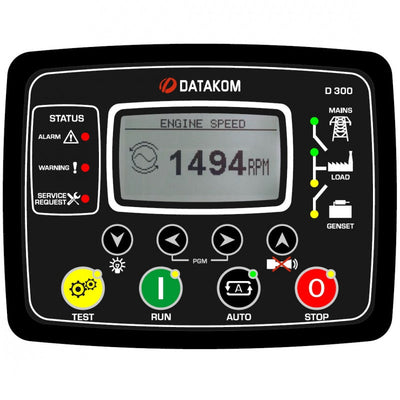

DIGITAL CONTROLLER

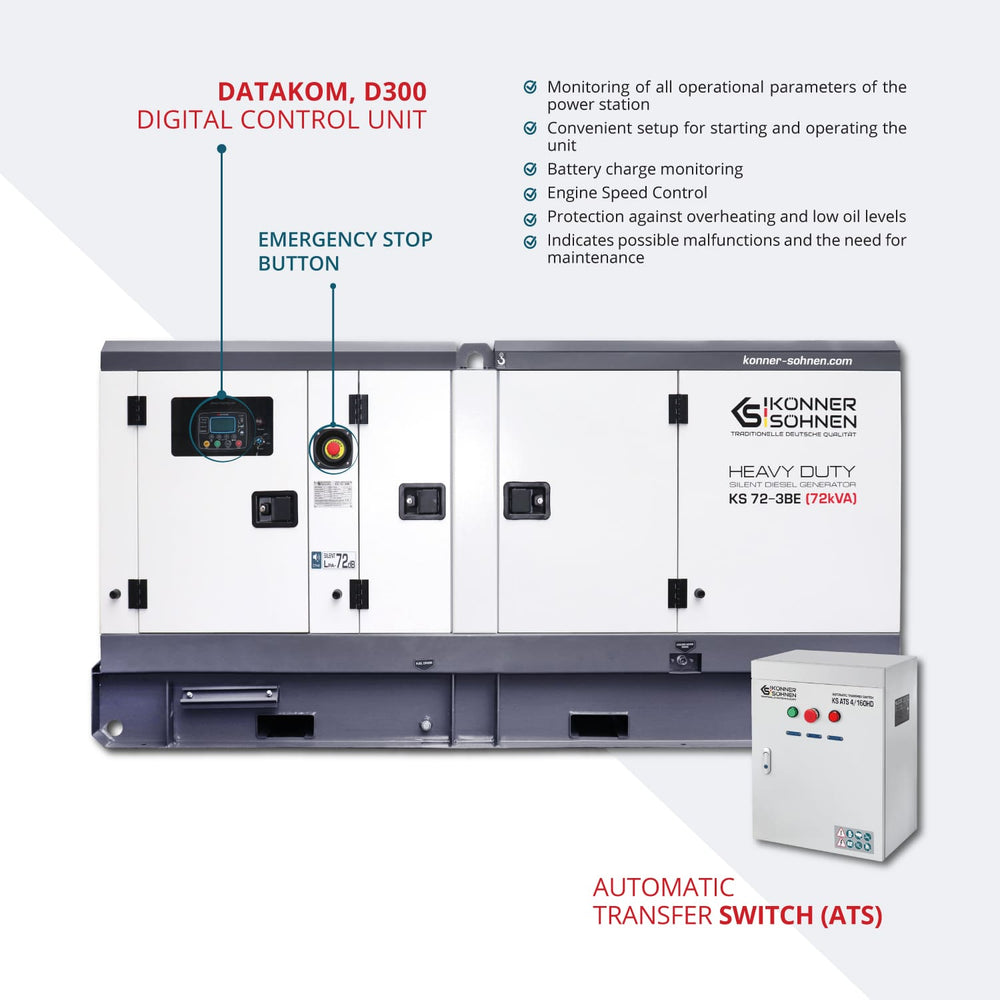

All work processes are controlled by a modern multifunctional digital control unit Datakom D300. The controller provides checking of all indicators of the power plant's operating status, convenient settings for starting and operating the plant, monitors the battery charge, controls the engine speed, protects against overheating and low oil level, signals possible malfunctions, and reports the need for service.
DIGITAL CONTROLLER

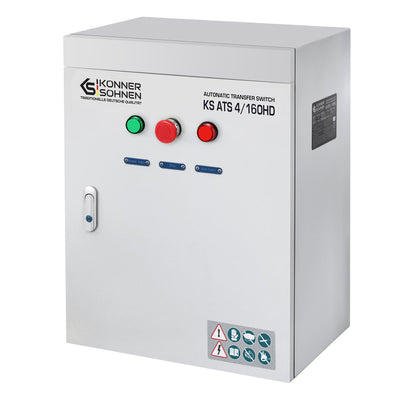

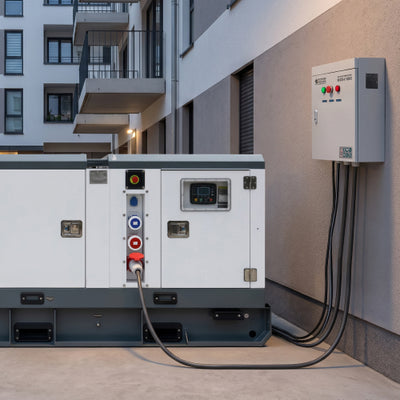

CAPABILITY OF ATS CONNECTION

The automatic transfer switch (ATS) automatically starts the power plant and switches the load to it when the main power source is disconnected. It also automatically stops the power plant when the central power supply is restored.
CAPABILITY OF ATS CONNECTION

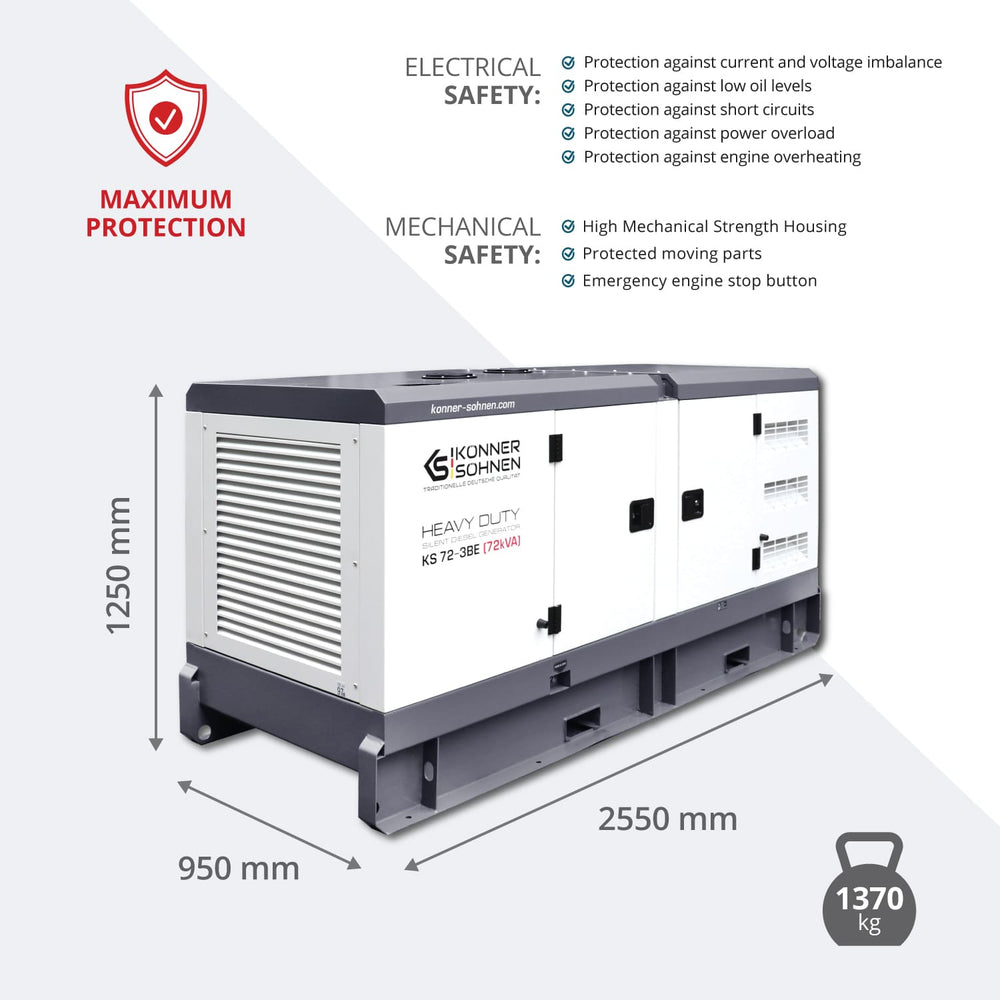

MAXIMUM DEGREE OF SECURITY

ELECTRIC SAFETY:
✔ protection against current and voltage imbalance
✔ protection against low oil level
✔ short circuit protection
✔ overpower protection
✔ protection against excessive temperature of the motor

MECHANICAL SAFETY:
✔ high mechanical strength housing
✔ protected moving parts
✔ emergency engine stop button

MAXIMUM DEGREE OF SECURITY

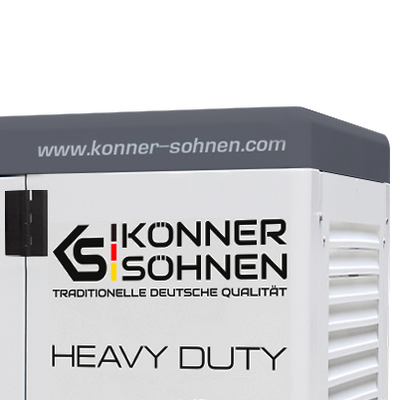

SUPER SILENT SOUNDPROOF ENCLOSURE

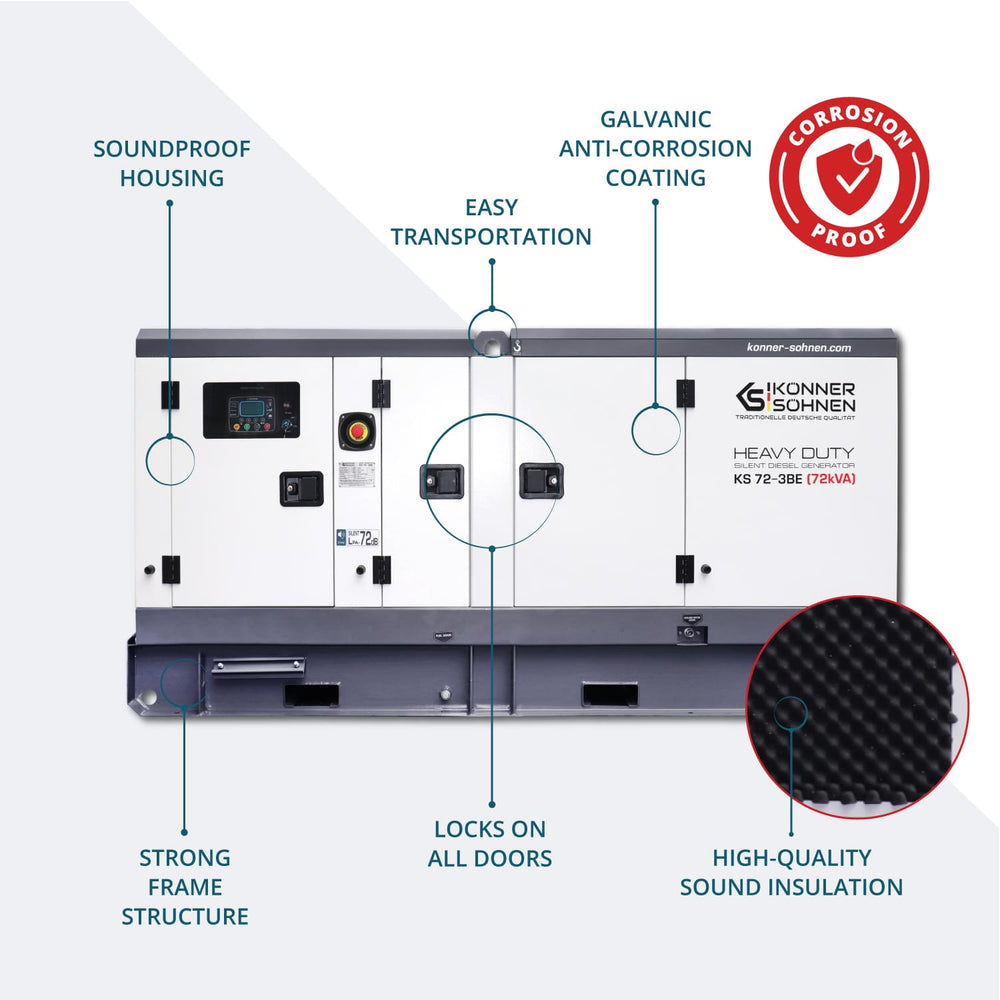

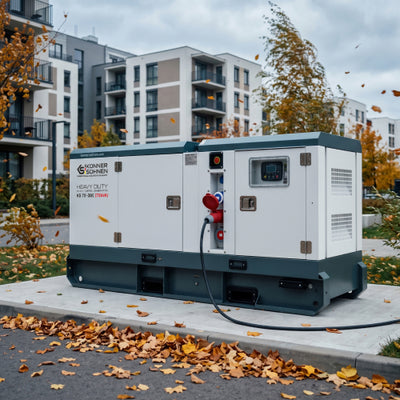

The high-quality SUPER SILENT soundproof enclosure features enhanced sound absorption due to an improved insulation layer, ensuring a minimal noise level of Lpa (7m) = 68 dB. These models are ideally suited for use in areas with strict noise level requirements and at locations where maintaining a quieter environment is essential. The enclosure has improved thermal distribution, protects the power plant from moisture and condensation, adverse weather conditions and unauthorised interference. The power plant has an emergency STOP button for quick engine shutdown in case of an emergency.
SUPER SILENT SOUNDPROOF ENCLOSURE

CONVENIENT TRANSPORTATION

The enclosure is equipped with special mounting holes that simplify the movement of the unit, loading and unloading operations and ensure reliable fixation during transportation.
CONVENIENT TRANSPORTATION

GALVANIC COATING

All power plant enclosures are covered with an anti-corrosion galvanic coating, which provides additional protection against corrosion and resistance to harsh weather conditions, significantly extends the service life of the equipment and reduces maintenance costs.
GALVANIC COATING

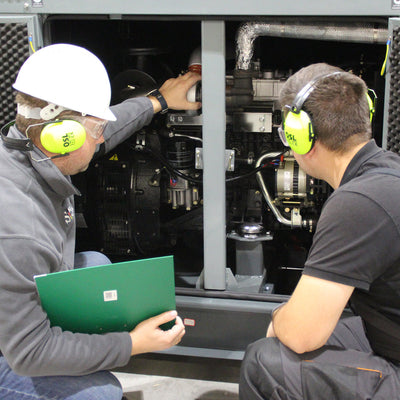

COMMISSIONING IN EUROPE

Könner & Söhnen diesel power generators go through pre-start preparation and test starts to ensure compliance with all European operational parameters at our own service center. A specialized loading bench is used to check the power output of the power plant under different operating conditions and to adjust the electronic control unit.
COMMISSIONING IN EUROPE

Specification

3 phase generator KS 72-3BE 3 phase generator KS 72-3BE
Voltage, V 230/400
Max/Nominal power (400V), kVA 72/65
Power factor, cosφ 1 (230V)/0.8 (400V)
Frequency, Hz 50**
Current (max), A 102.8

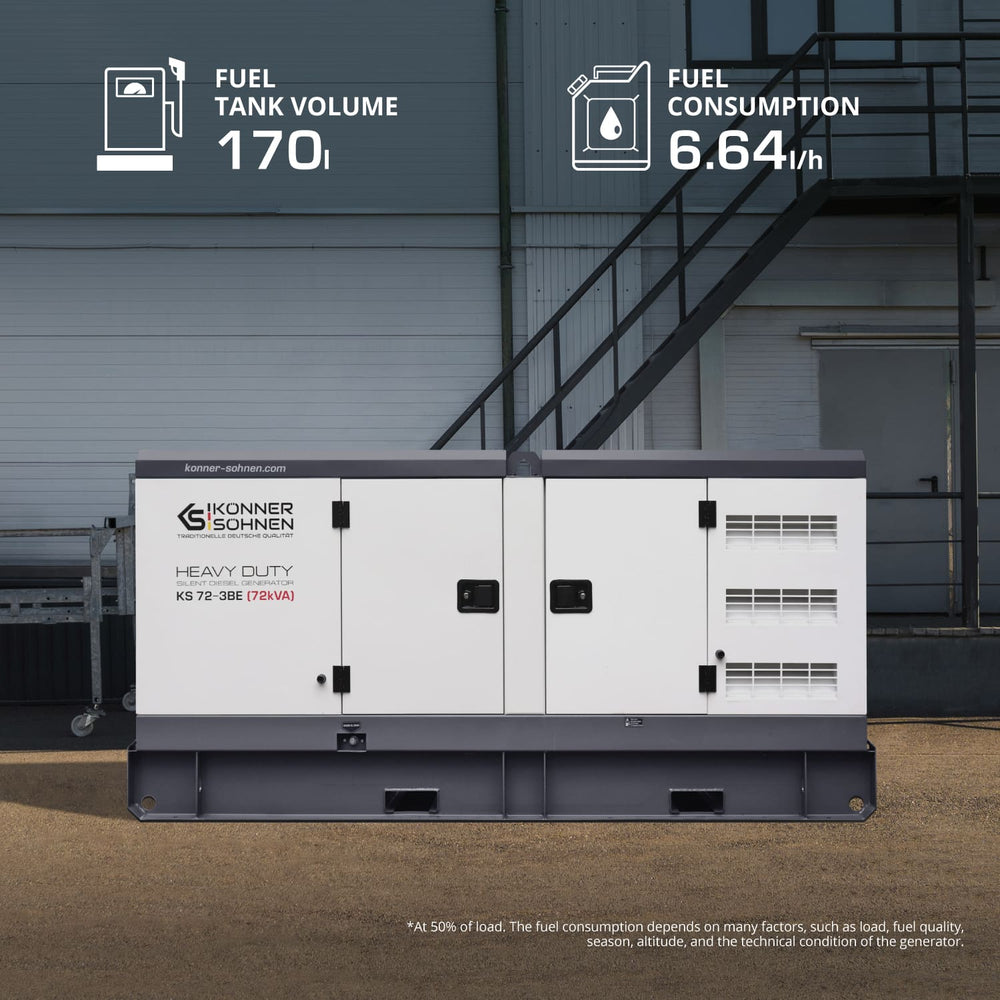

Fuel consumption***, l/h 6.64 (at 50% load)
Housing type soundproof, moisture-proof, all-weather
Noise level Lpa (7m)/Lwa, dB 72/97
Control unit multifunctional digital controller
Controller model Datakom D300
Alternator type Stamford type, synchronous, excitation system, AC brushless, four-pole
Engine type Water-cooled four-cylinder four-stroke diesel engine
Engine brand Baudouin
Engine model 4M10G70/5
Engine speed, U/min 1500
Cooling type liquid
Engine speed control electronic
Preheater +
Output for ATS +
Fuel tank volume, l 170
Crank case volume, l 13
Coolant volume, l 9.4
Accumulator (A·h) 100
Battery charger integrated
Warranty 1 year
Protection class IP54
Net dimensions (LxWxH), mm 2550×950×1200
Gross dimensions (LxWxH), mm 2580×980×1270
Net weight, kg 1370
Gross weight, kg 1370.0
SKU KS 72-3BE
Barcode 4260405368150

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
