Variants
Max Power: 5.5 kW
Inverter generator KS 5500iE S ATSR
5 769,00 zł
Inverter generator KS 5500iE S ATSR
5 769,00 zł
Inverter generator KS 5500iE S ATSR
Unavailable
5 769,00 zł
Specification
| Voltage, V: | 230 |
| Max power, kW: | 5.5 |
| Nominal power, kW: | 5.0 |
| Engine start: | Manual/electric |
| Outlets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
Specification
| Voltage, V | 230 |
| Max power, kW | 5.5 |
| Nominal power, kW | 5.0 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 23.9 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Engine start | Manual/electric |
| Fuel tank volume, l | 13.5 |
| Runtime at 50% load, h*** | 8.4 |
| LED display | Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator |
| Noise level Lpa (7m)/Lwa, dB | 66/97 |
| Power output DC, V/А | 12V/8.3A |
| USB-Outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 330i |
| Engine cylinder volume, cm3 | 312 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp | 9.5 |
| Possibility of parallel connection | + |
| Output for ATS | + |
| Crank case volume, l | 0.85 |
| Accumulator (A·h) | 1.6 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Includes | Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Cable for parallel connection, Funnel, 16 A Schuko plug, 32 A CEE plug |

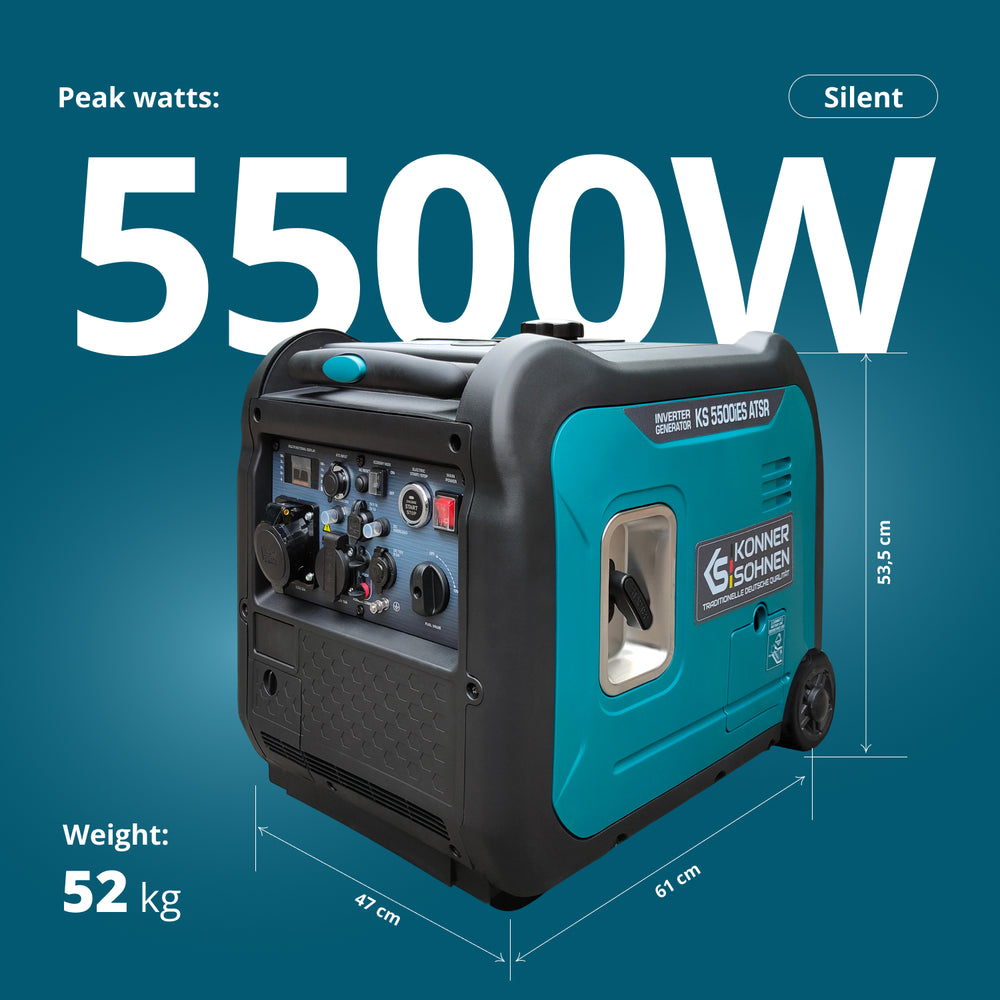

| Net dimensions (LxWxH), mm | 610х470х535 |
| Gross dimensions (LxWxH), mm | 680x510x605 |
| Net weight, kg | 52 |
| Gross weight, kg | 57.8 |
| SKU | KS 5500iE S ATSR |
| Barcode | 4260405365579 |
Benefits
Delivery
- Free shipping: receive your order in just 1-5 business days.
Delivery
Payment
- We offer a wide range of secure and convenient payment methods, including:
Payment
Features
Pure sine wave
The built-in electronic unit with microprocessor control monitors the operation of the generator and provides a stable output voltage of 230V 50Hz sinusoidal form, which is suitable for the reliable operation of sensitive electronics.

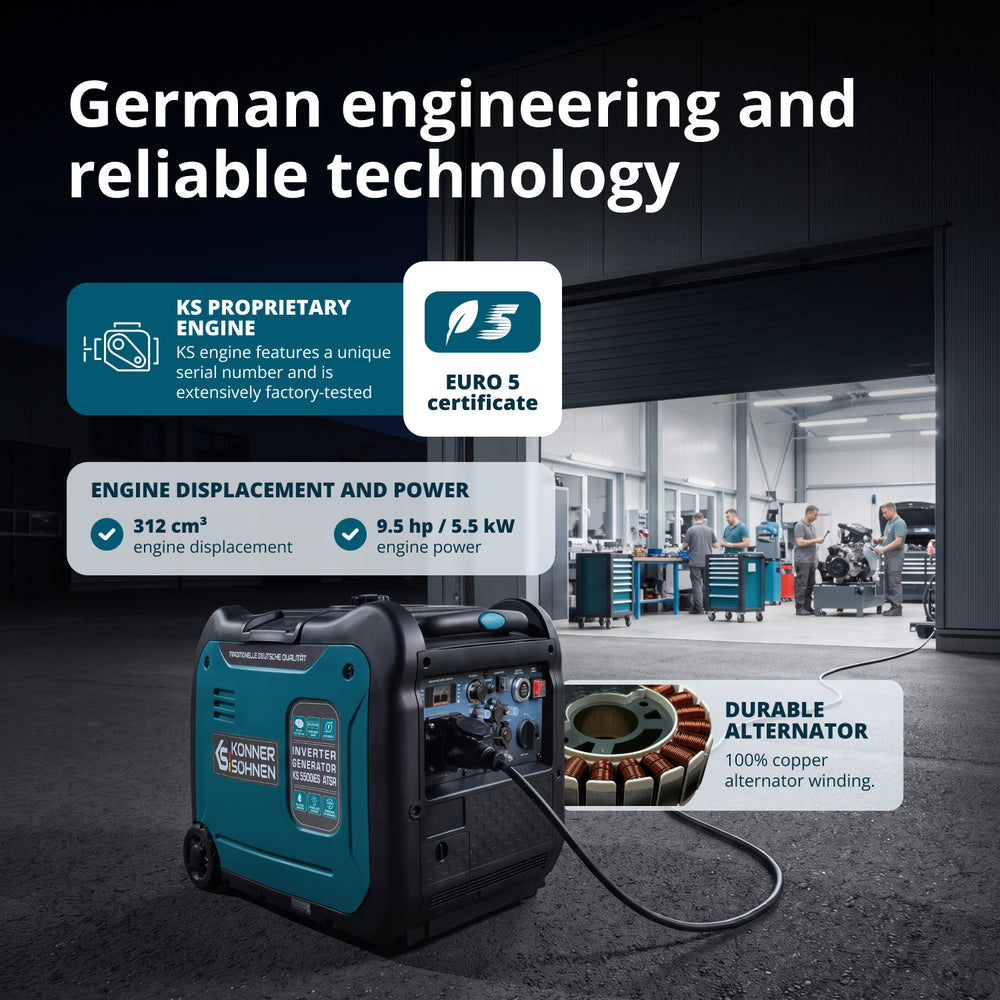

Robust engine
The Könner & Söhnen reliable engine is characterized by increased durability, long and stable operation, and meets all European quality standards, including EURO V.
Economy mode
The ergonomic control panel is equipped with a fuel economy mode switch. This mode reduces fuel consumption by up to 50% at small loads due to lower engine revolutions.
Automatic transfer switch
The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored. The ATS output features an 7-pin connector for connecting the ATS unit KS ATS 4/25 Inverter.

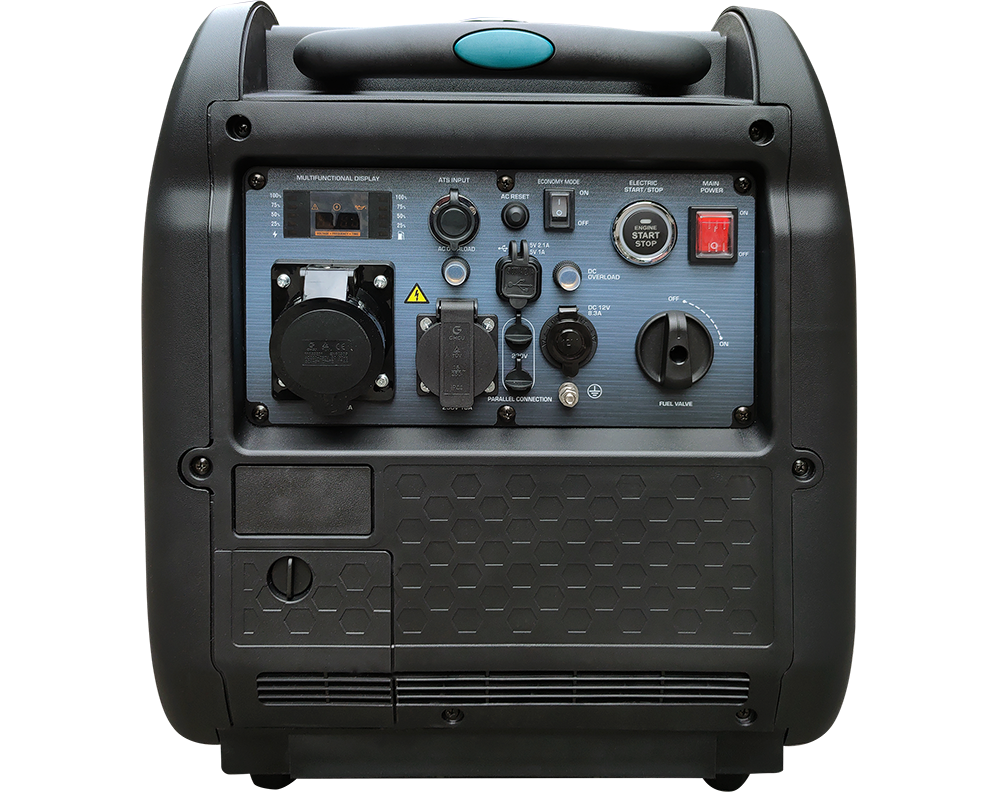

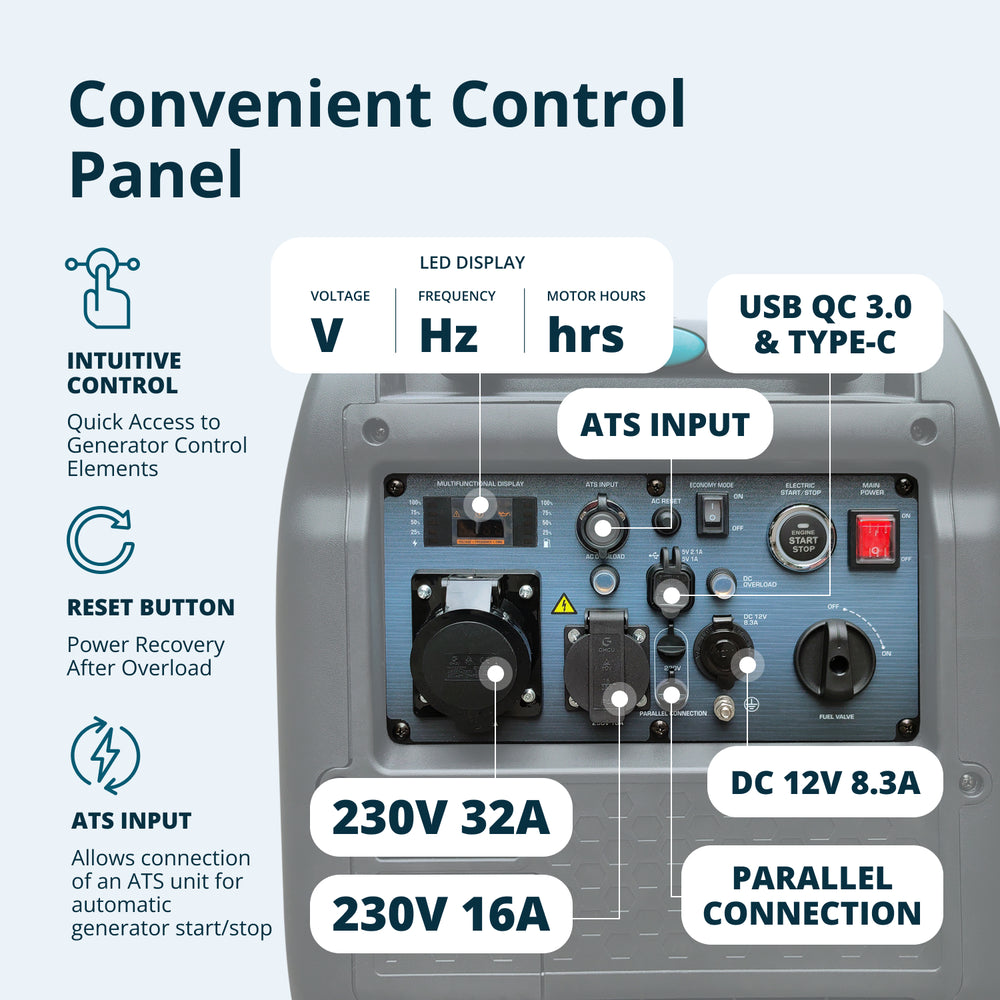

Ergonomic control panel
Convenient location of all functions: multifunction LED display (hour meter, frequency, voltage), working mode indicator, overload and short circuit protection, low oil level sensor, Reset button to reset the control system and restore voltage supply, connector for parallel connection of generators, two USB outputs (5V/1A, 5V/2.1A), 230 V socket and grounding terminal.
Low noise level
Thanks to a special protective housing, which provides a minimum noise level of 66 dB, the operation of the device will be as comfortable as possible and will not disturb others.
High quality alternator
Könner & Söhnen inverter generators are equipped with a robust brushless alternator with 100% copper winding. The high-end compact permanent magnet alternator is housed in a plastic casing and can withstand maximum loads without any damage to ensure long-term and reliable operation of the generator set.
Parallel connection
Possibility of parallel connection of two generators for increased total output and possibility of use of more powerful devices. With a cable for parallel connection, which is in a set, you can connect two inverter generators together and get an output power, which is equal to the sum of the rated power of these models.

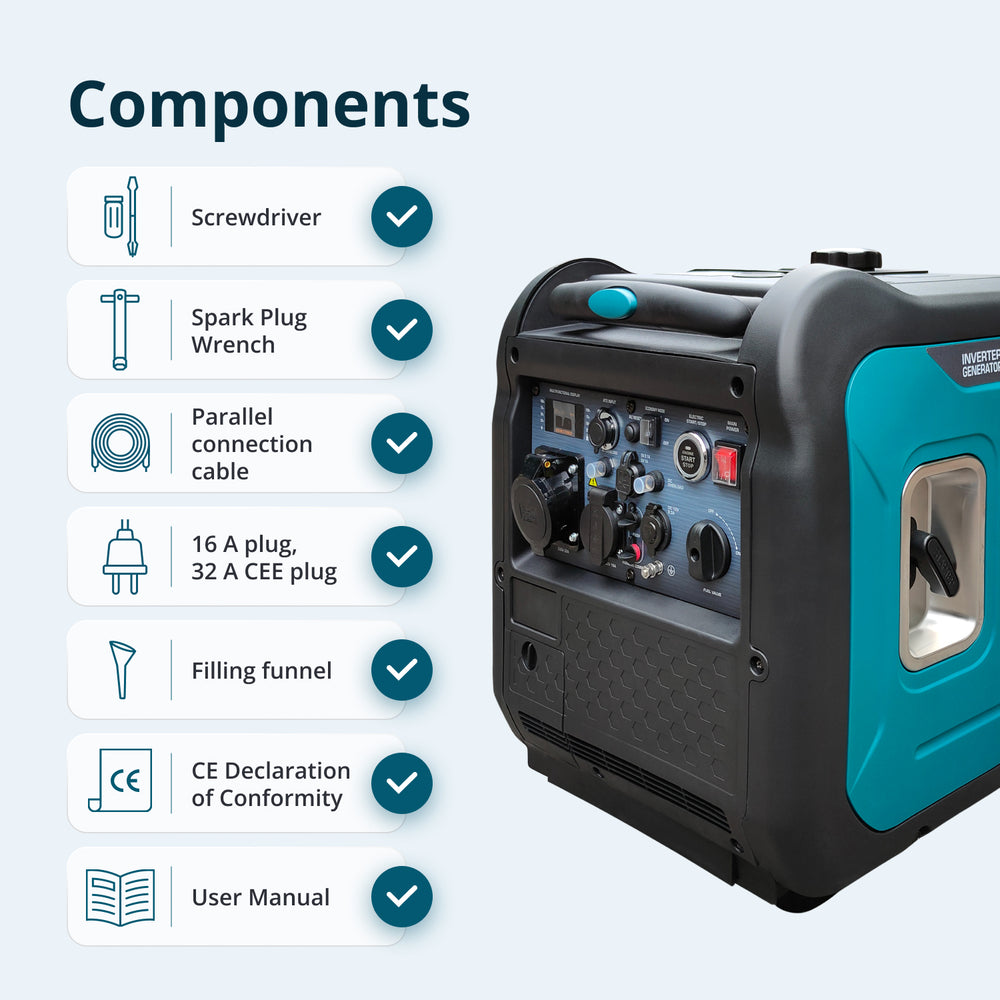

Accessories set
Generator is equipped with additional accessories: spark plug wrench, filling funnel, parallel connection cable, 16 А Schuko plug, PH2 screwdriver 6.0 mm, 32 А CEE plug.
Economy Mode
Reduces fuel consumption by up to 50% at small loads
12V/8.3A DC Socket
For powering 12V devices, providing up to 8.3A
"Reset" button
For resets the control system and restores voltage supply
2 USB-Outputs
Convenient gadget connection (5V/1A, 5V/2.1A)
Parallel Connection
Possibility of parallel connection of two generators allows for the use of more powerful devices
Multifunction Display
Load, fuel level, voltage, frequency, working hours, overload indicator, voltage indicator, oil level indicator
1x16A AC Socket
Standard Schuko 230V socket for easy connection of most appliances
1x32A AC Socket
For connecting powerful professional power tools
ATS Input
For connecting the Automatic Transfer Switch (ATS) unit
Economy Mode
Reduces fuel consumption by up to 50% at small loads
12V/8.3A DC Socket
For powering 12V devices, providing up to 8.3A
"Reset" button
For resets the control system and restores voltage supply
2 USB-Outputs
Convenient gadget connection (5V/1A, 5V/2.1A)
Parallel Connection
Possibility of parallel connection of two generators allows for the use of more powerful devices
Multifunction Display
Load, fuel level, voltage, frequency, working hours, overload indicator, voltage indicator, oil level indicator
1x16A AC Socket
Standard Schuko 230V socket for easy connection of most appliances
1x32A AC Socket
For connecting powerful professional power tools
ATS Input
For connecting the Automatic Transfer Switch (ATS) unit
Specification
Inverter generator KS 5500iE S ATSR
| Voltage, V | 230 |
| Max power, kW | 5.5 |
| Nominal power, kW | 5.0 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 23.9 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Engine start | Manual/electric |
| Fuel tank volume, l | 13.5 |
| Runtime at 50% load, h*** | 8.4 |
| LED display | Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator |
| Noise level Lpa (7m)/Lwa, dB | 66/97 |
| Power output DC, V/А | 12V/8.3A |
| USB-Outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 330i |
| Engine cylinder volume, cm3 | 312 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp | 9.5 |
| Possibility of parallel connection | + |
| Output for ATS | + |
| Crank case volume, l | 0.85 |
| Accumulator (A·h) | 1.6 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Includes | Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Cable for parallel connection, Funnel, 16 A Schuko plug, 32 A CEE plug |
| Net dimensions (LxWxH), mm | 610х470х535 |
| Gross dimensions (LxWxH), mm | 680x510x605 |
| Net weight, kg | 52 |
| Gross weight, kg | 57.8 |
| SKU | KS 5500iE S ATSR |
| Barcode | 4260405365579 |
