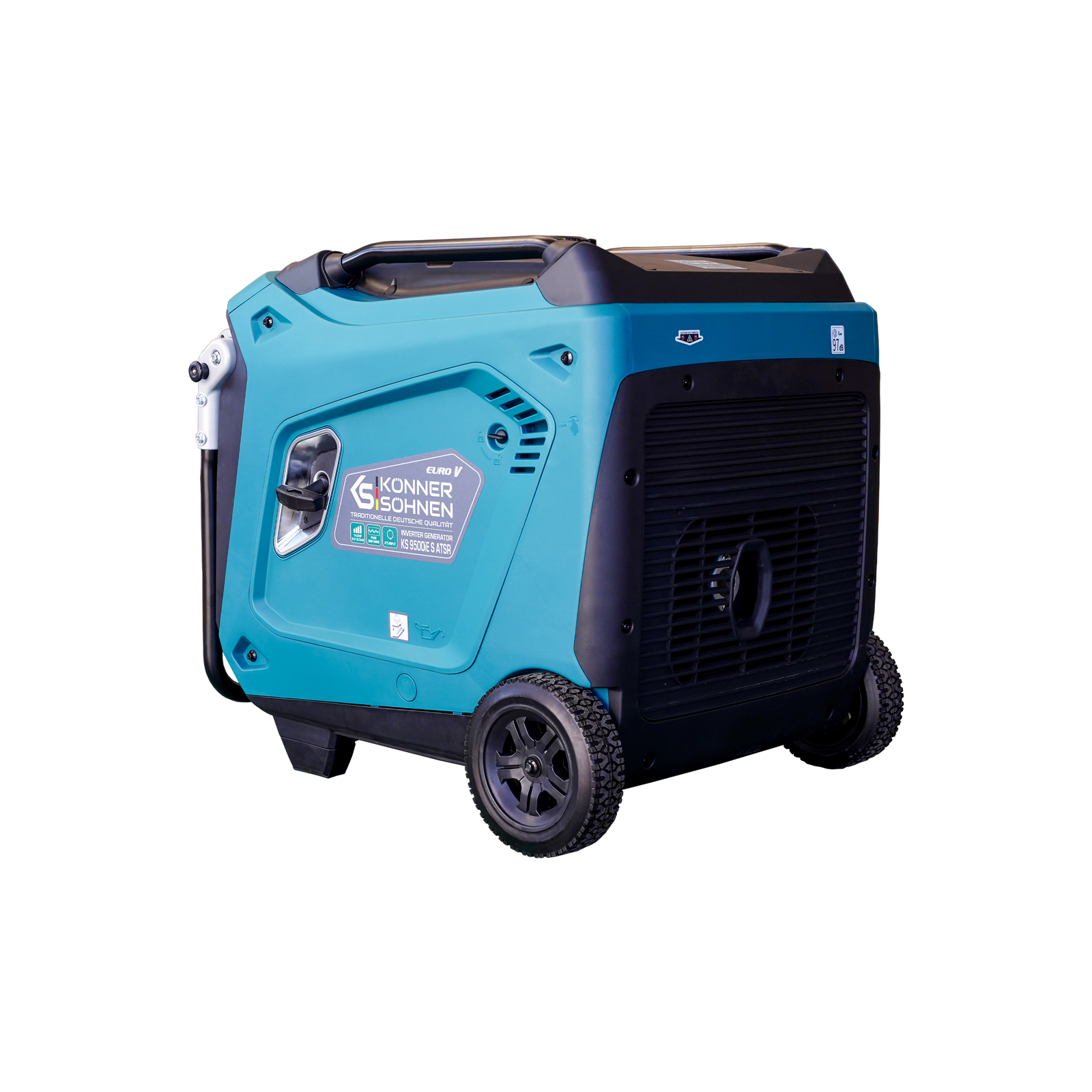

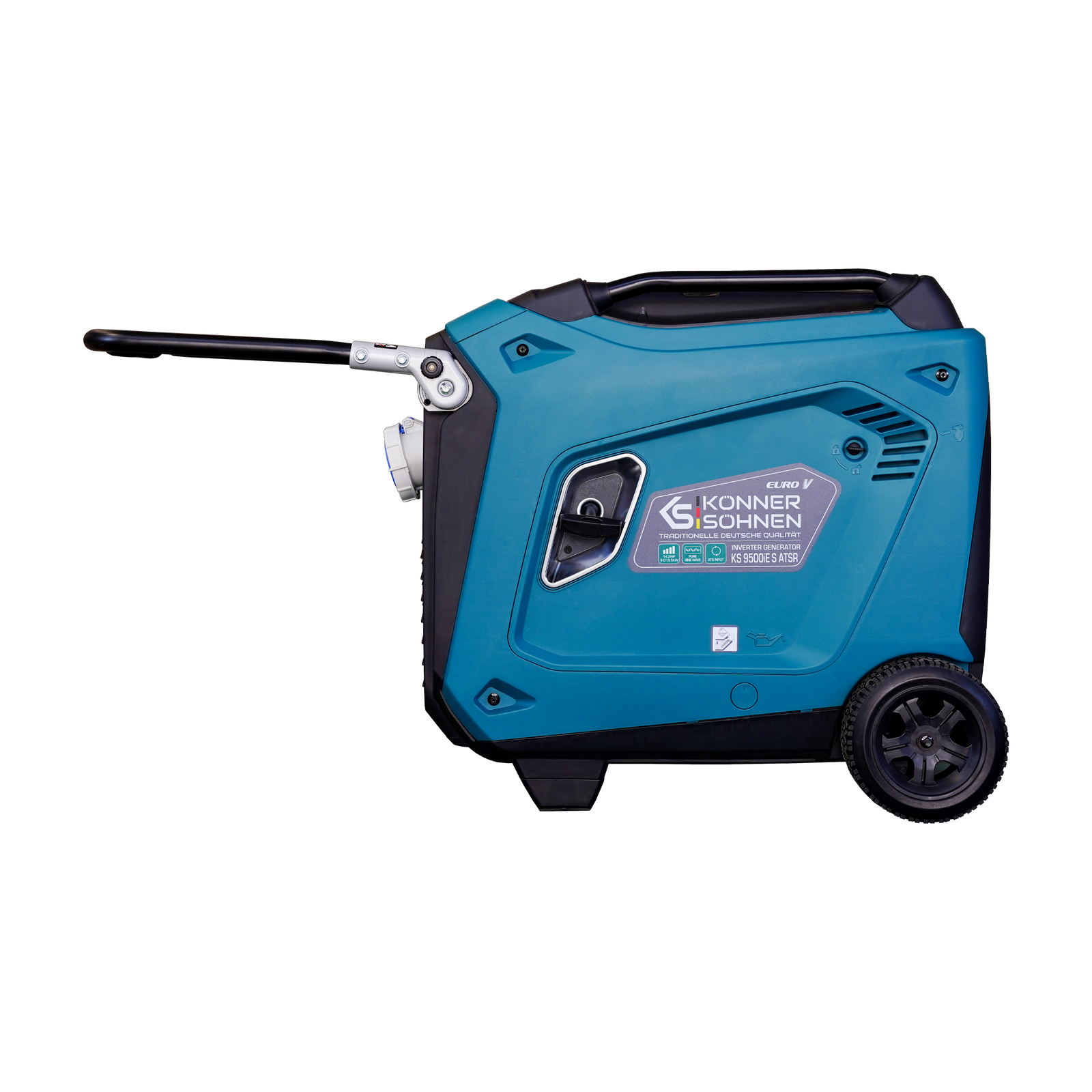

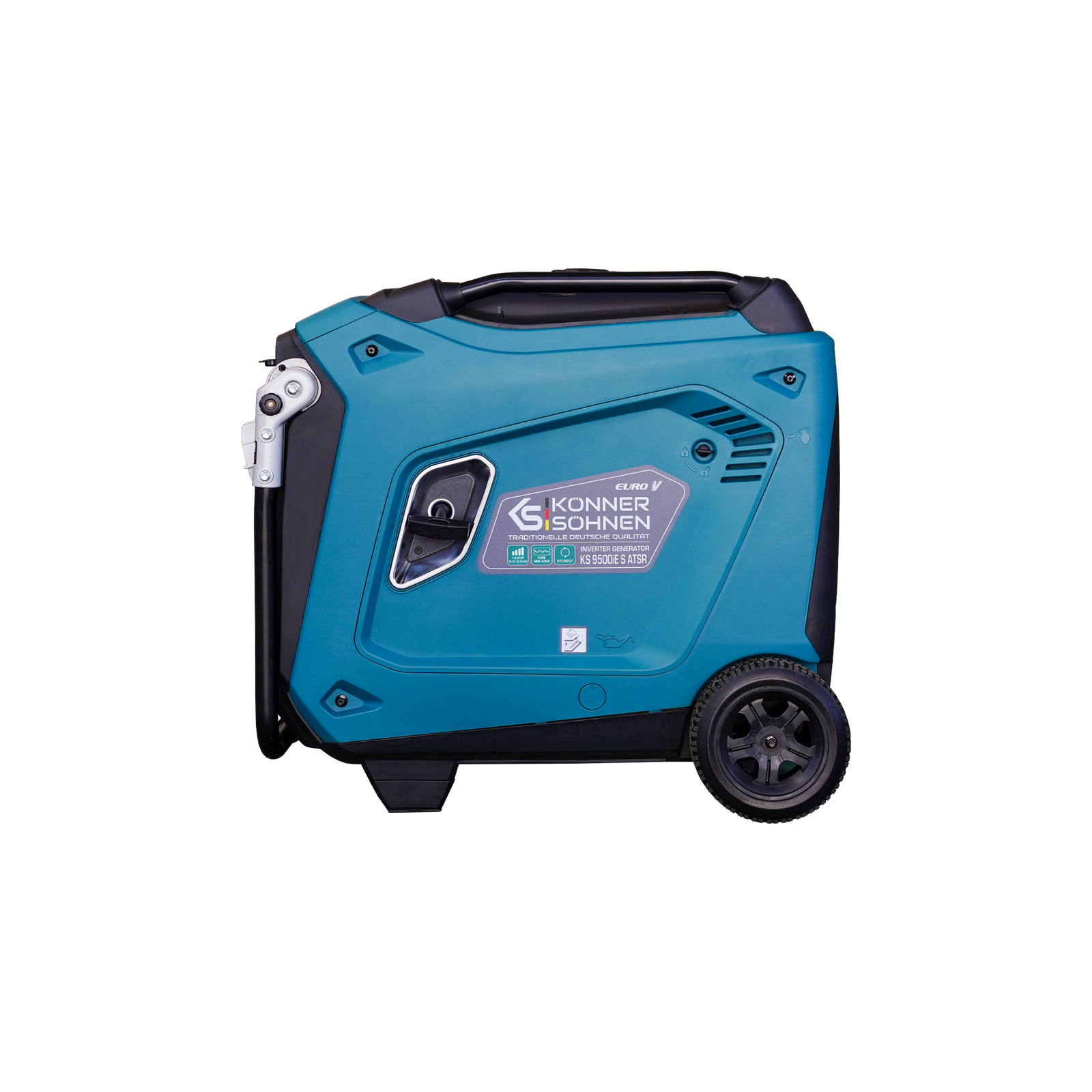

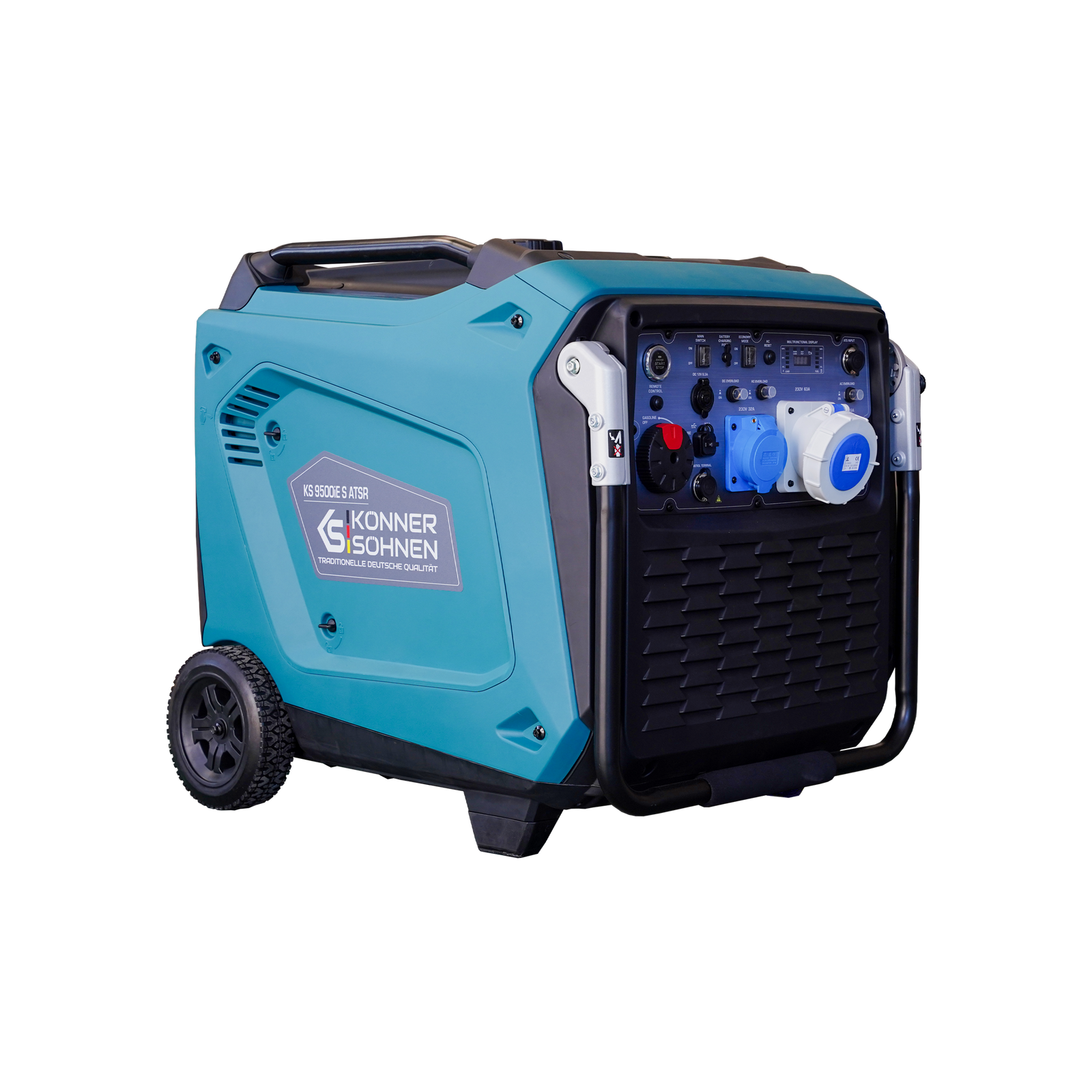

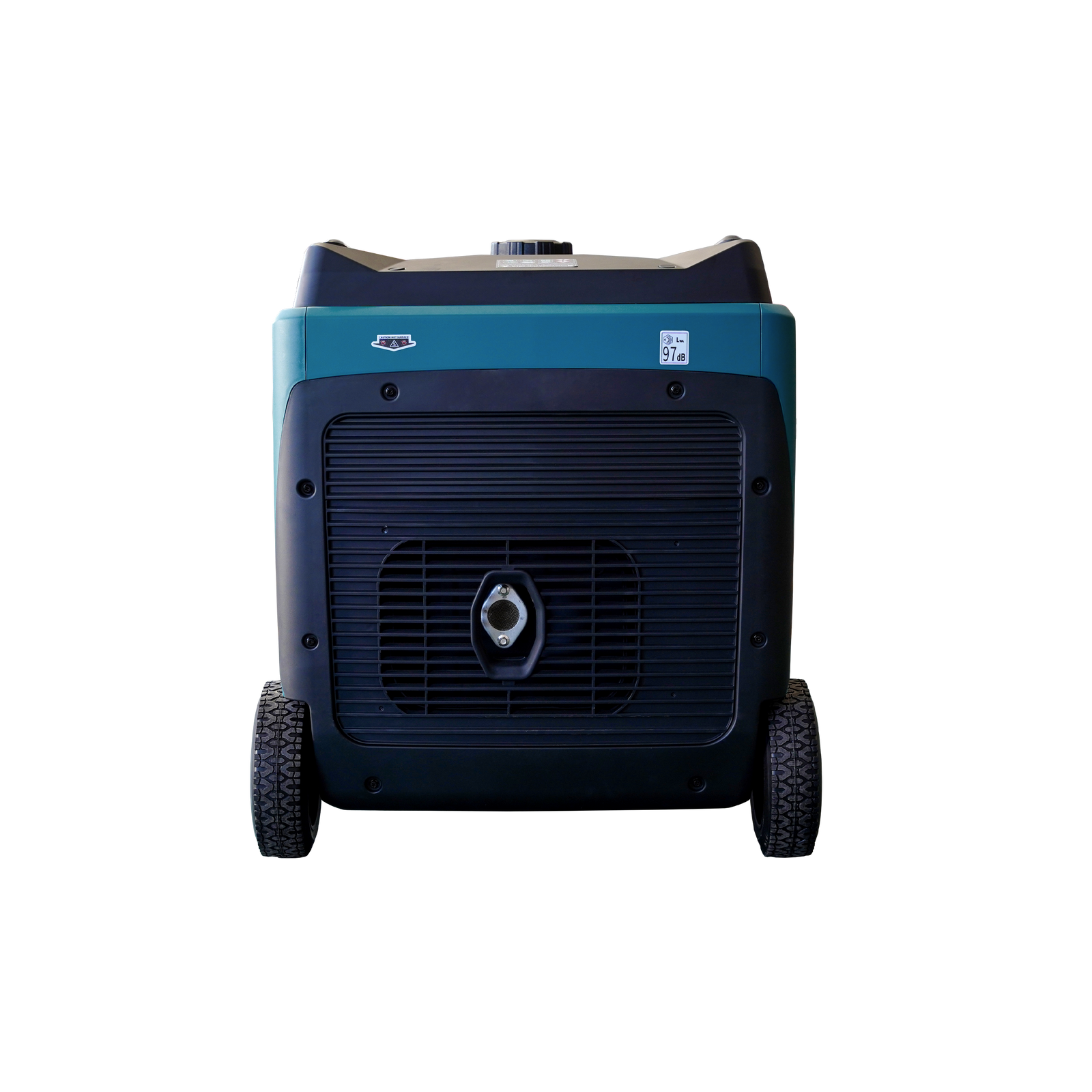

Inverter Generator KS 9500iE S ATSR

Name: Inverter Generator KS 9500iE S ATSR
Brand: Könner & Söhnen
SKU: 4260405367184
Price: 2275.95 EUR
Availability: OutOfStock

Unavailable

€2.275,95

Specification

Voltage, V:	230
Max power, kW:	9.5
Nominal power, kW:	9.0
Engine start:	Manual/electric/remote
Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A

Specification

Voltage, V	230
Max power, kW	9.5
Nominal power, kW	9.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	41.3
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Engine start	Manual/electric/remote
Fuel tank volume, l	30
Runtime at 50% load, h***	10 h 15 min
LED display	Multifunctional
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12V/8.3A
USB-Outputs	QC 3.0 + Type C
Engine model	KS 480i
Engine cylinder volume, cm3	438
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	14.2
Output for ATS	+
Crank case volume, l	1.2
Accumulator (A·h)	3
Alternator winding	Copper
Protection class	IP23M
Includes	Generator, Packaging, Manual, Spark plug wrench, Accessory pouch, PH2 6.0 mm screwdriver, Handle, 2×Wheels, Remote control, Battery charging cable, Oil funnel
Gross dimensions (LxWxH), mm	905×715×815
Net weight, kg	85
Gross weight, kg	85.0
SKU	KS 9500iE S ATSR
Barcode	4260405367184

Benefits

9.5 kW power for energy-intensive appliances and tools
Inverter technology with pure sine wave for safe operation of sensitive electronics
Quiet operation (~70 dB), suitable for residential areas or outdoor use
ATS support for automatic backup power without user intervention
External generator control via Control Terminal and remote start key fob.

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

KS 9500iE S ATSR is an inverter generator with a maximum output of 9.5 kW, designed for reliable backup power and heavy-duty tasks. Thanks to inverter technology, it safely powers sensitive electronics, while quiet operation ensures comfort in residential areas, campsites, or business environments. ATS compatibility provides automatic backup power during outages. The remote control allows starting and stopping the generator from a distance, while external control via dry contacts enables integration with automated control systems. A powerful engine, 10 hours of runtime, and portable design make it ideal for homes, construction sites, or camping.

01 High power

02 Inverter technology

03 Quiet operation

04 Automatic backup power

05 Remote control

06 External control via dry contacts

07 Start/Stop button

08 USB ports

09 Extended runtime

10 EU compliance

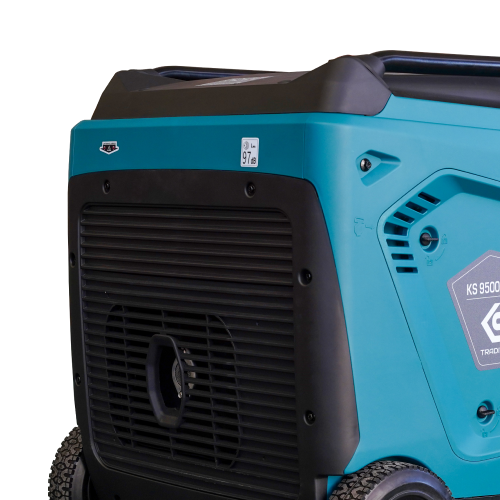

High power

9.5 kW maximum output, ideal for home, office, and construction site backup.

Inverter technology

Pure sine wave ensures safe operation of sensitive electronics.

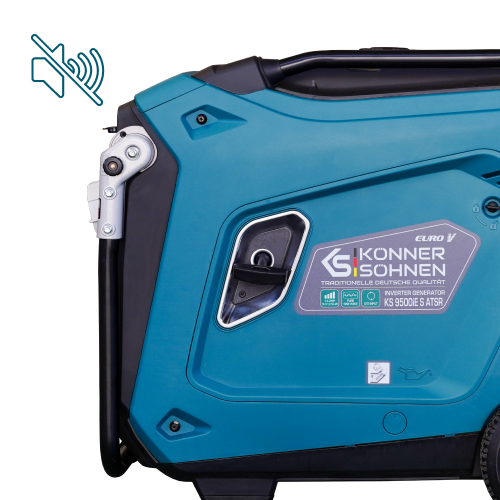

Quiet operation

Noise level ~70 dB, suitable for residential and open spaces.

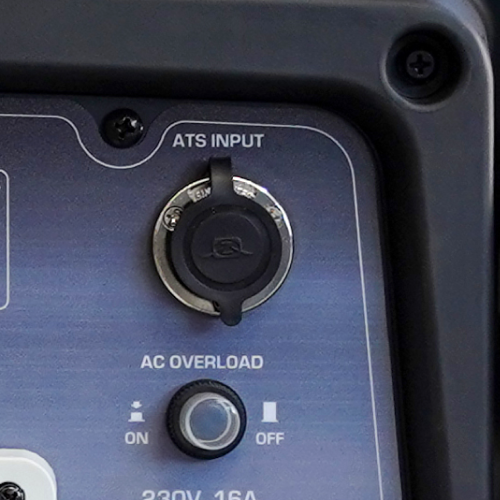

Automatic backup power

ATS connection enables seamless operation during outages.

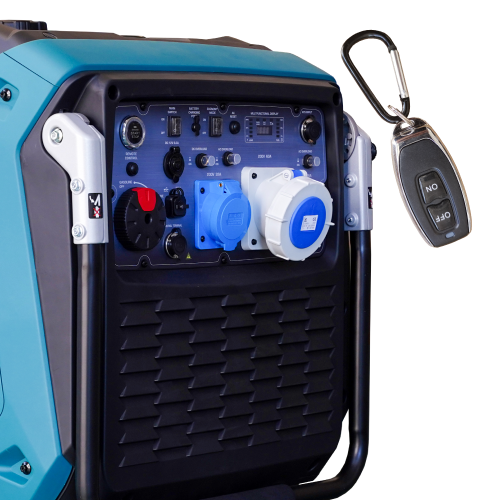

Remote control

Convenient start and stop of the generator from a distance.

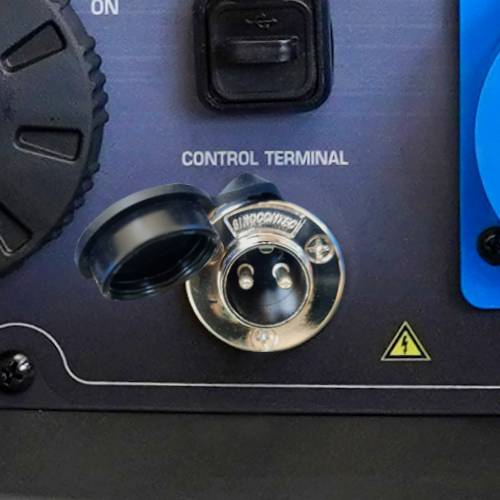

External control via dry contacts

Integration with automation and backup systems.

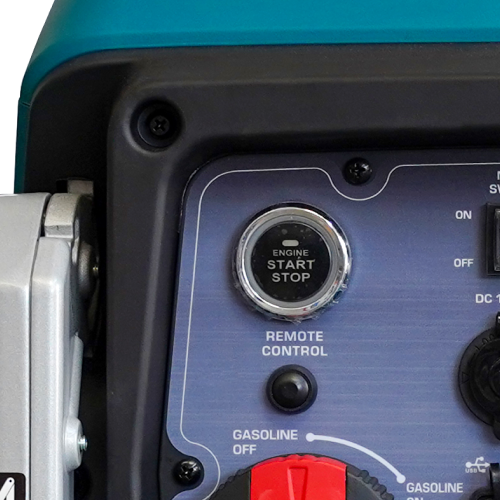

Start/Stop button

Quick and simple starting.

USB ports

Convenient connection and charging of mobile devices without additional adapters.

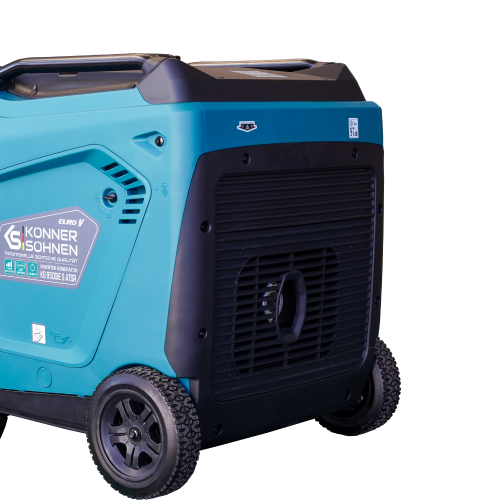

Extended runtime

About 10 hours on a single 30 L tank reduces refueling frequency.

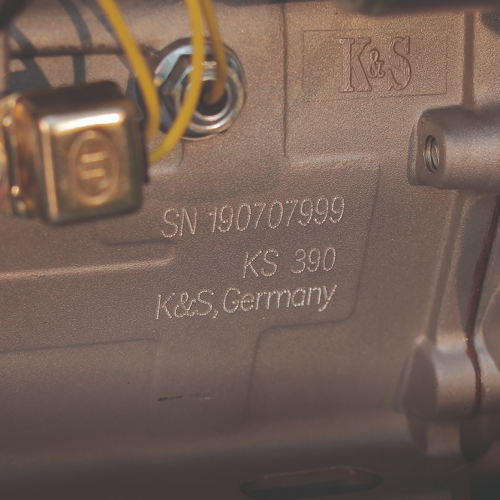

EU compliance

Meets Euro 5 requirements.

Benefits

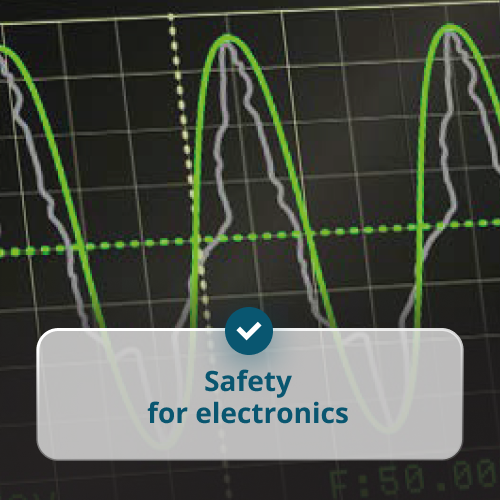

Electronic safety

pure sine wave for safe operation of sensitive devices such as laptops, TVs, medical equipment, and heating boilers.

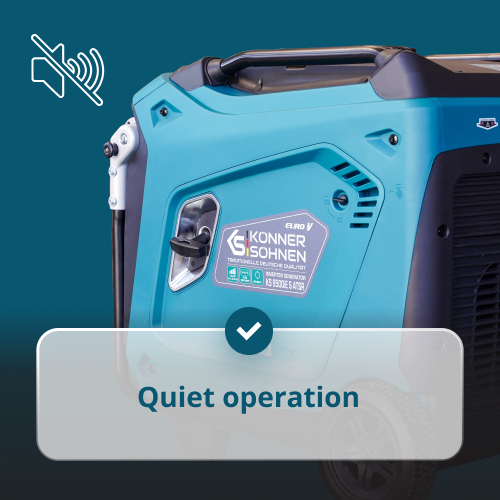

Quiet operation

the enclosed sound-absorbing casing provides ~70 dB, quieter than most open-frame generators.

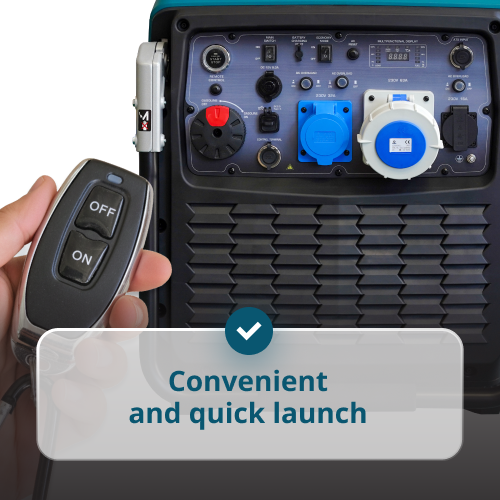

Convenient and quick start

remote control allows operation from a distance.

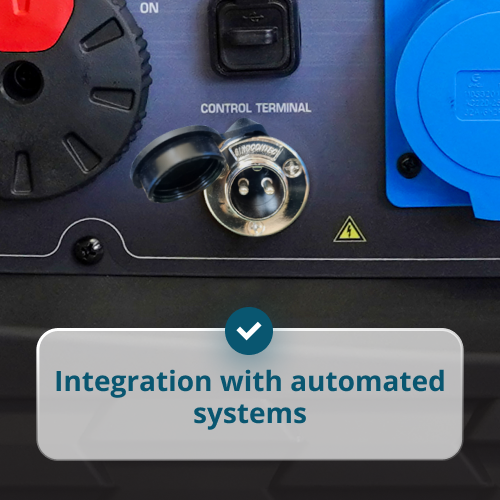

Integration with automatic systems

remote control allows operation from a distance.

Easy start

Start/Stop button ensures quick generator start and stop.

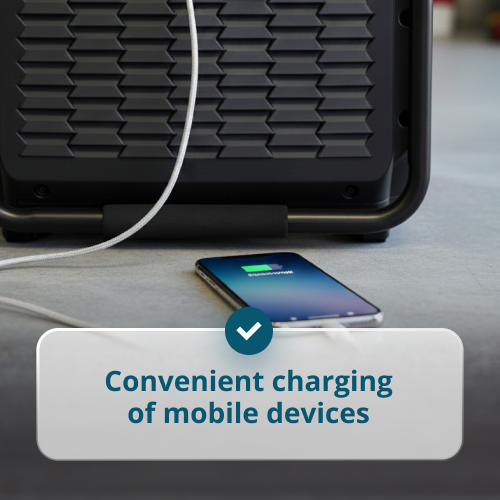

Convenient charging of mobile devices

USB ports allow connecting gadgets without extra adapters.

Efficient engine

powerful engine and 30 L tank ensure 10 hours of operation at 50% load.

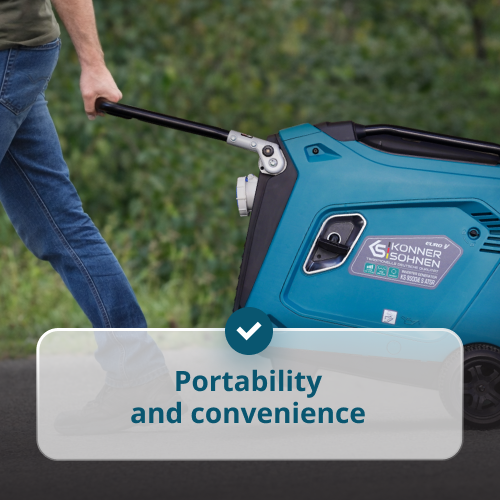

Portability and convenience

wheels and handle for easy movement.

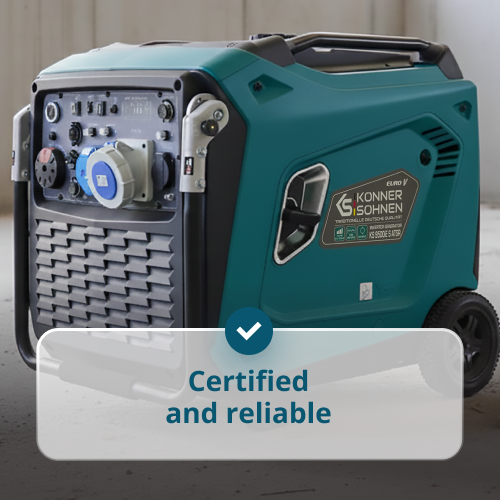

Certified and reliable

Euro 5 compliance and 2-year warranty.

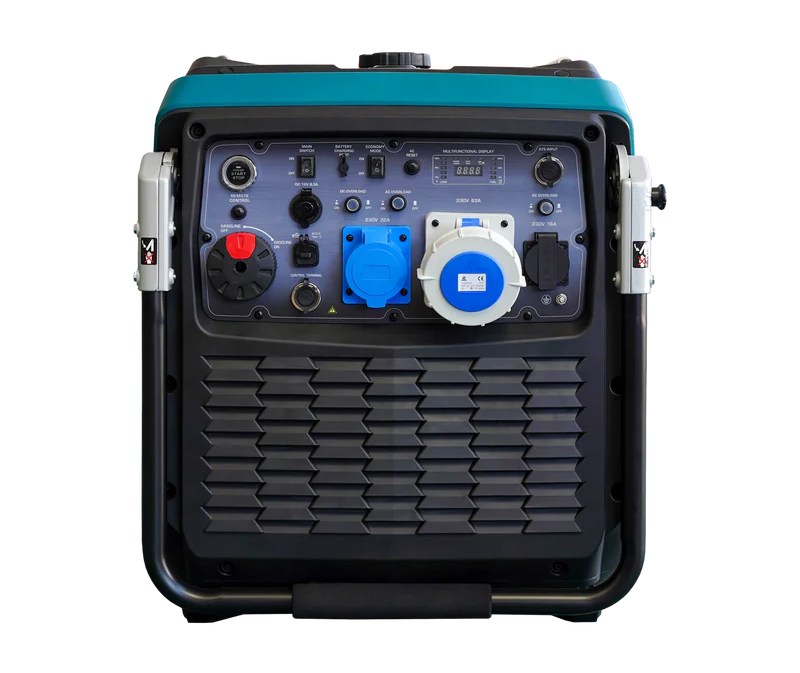

Fuel level indicator

shows the amount of fuel in the tank for monitoring and timely refueling when the generator is off.

Transport handle and wheels

simplify generator movement.

Anti-vibration feet

reduce vibration during operation, increasing stability and reducing noise.

START/STOP button

allows you to start or stop the generator.

Battery charging socket

used for charging the generator’s battery

Economy Mode switch

reduces engine speed to lower fuel consumption and noise at low loads

AC RESET button

restores power after overload protection activation

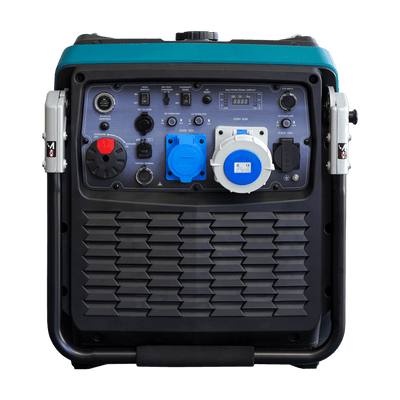

Multifunctional LED display

shows main operating parameters

Connection for external ATS module

enables automatic generator start during power outages.

Socket overload protection

prevents socket damage

230V 16A Schuko socket

for connecting standard household devices

Grounding bolt

grounding connection for the generator

230V 63A CEE socket

for connecting high-power electrical equipment

230V 32A CEE socket

for connecting energy-demanding appliances

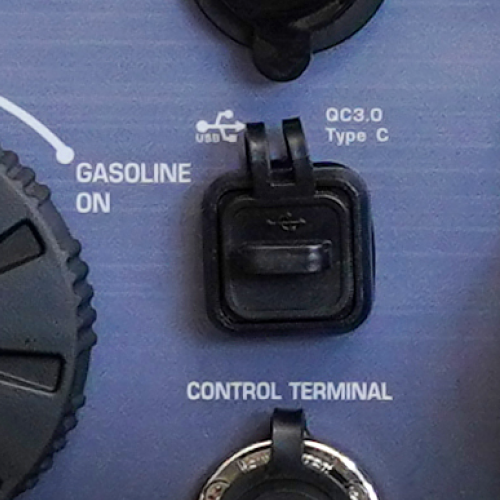

USB outputs 2×5V Type A/Type C

for charging mobile devices and gadgets without extra adapters

External control connection

allows connecting external generator control systems

12V/8.3A DC socket

for powering and charging 12V batteries and equipment

Remote control synchronization button

activates or deactivates remote generator control

Specification

Inverter Generator KS 9500iE S ATSR

Voltage, V	230
Max power, kW	9.5
Nominal power, kW	9.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	41.3
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Engine start	Manual/electric/remote
Fuel tank volume, l	30
Runtime at 50% load, h***	10 h 15 min
LED display	Multifunctional
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12V/8.3A
USB-Outputs	QC 3.0 + Type C
Engine model	KS 480i
Engine cylinder volume, cm3	438
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	14.2
Output for ATS	+
Crank case volume, l	1.2
Accumulator (A·h)	3
Alternator winding	Copper
Protection class	IP23M
Includes	Generator, Packaging, Manual, Spark plug wrench, Accessory pouch, PH2 6.0 mm screwdriver, Handle, 2×Wheels, Remote control, Battery charging cable, Oil funnel
Gross dimensions (LxWxH), mm	905×715×815
Net weight, kg	85
Gross weight, kg	85.0
SKU	KS 9500iE S ATSR
Barcode	4260405367184

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
